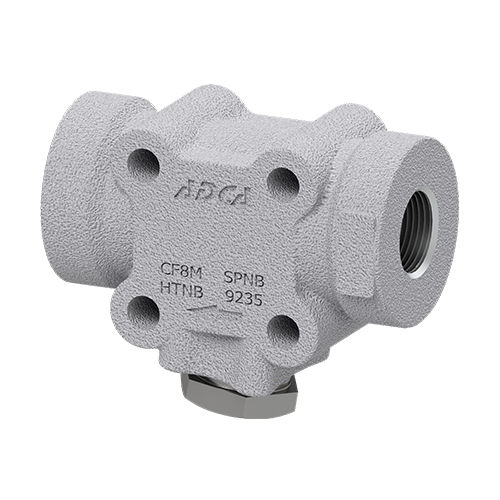

Stainless steel pipeline UCX90

for gasmodular

The UCX series pipeline connectors are used in steam systems where a simple and economic maintenance program is desired. Typical installations are drip service on steam lines, tracing applications and small process equipment. The four-bolt flange connector allows for fast trap replacement without disturbing the pipelines. The UCX connector fits the universal four-bolt swivel connection steam traps. MAIN FEATURES Remains permanently in-line making the replacement of new traps easier and quicker. Steam traps can swivel 360º, allowing any pipe orientation during installation. The universal flange allows the trap to be positioned in the correct position, regardless of pipeline configuration. Built-in strainer. SIZES: 1/2” to 1” – DN 15 to DN 25 CONNECTIONS: Female threaded ISO 7 Rp or NPT Flanged EN 1092-1 PN 100 Flanged ASME B16.5 Class 600 Socket weld (SW) ASME B16.11
