Air trap TSW22
condensatesteamautomatic

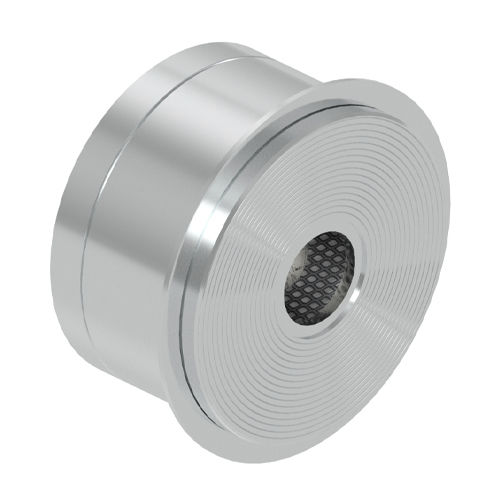

Air trap - TSW22 - VALSTEAM ADCA Engineering S.A. - condensate / steam / automatic
Air trap - TSW22 - VALSTEAM ADCA Engineering S.A. - condensate / steam / automatic
Air trap - TSW22 - VALSTEAM ADCA Engineering S.A. - condensate / steam / automatic - image - 2
Add to favorites
Compare this product

Characteristics

Medium
condensate, steam, air
Operational mode
automatic
Type
thermostatic
Other characteristics
compact
Operating pressure

Max.: 22 bar
(319.08 psi)

Min.: 0 bar
(0 psi)

Discharge capacity

Max.: 795 kg/h
(1,753 lb/h)

Min.: 70 kg/h
(154 lb/h)

Operating temperature

Max.: 250 °C
(482 °F)

Min.: 0 °C
(32 °F)

Description

The ADCA TSW22 series of balanced pressure thermostatic steam traps and air vents are specifically designed for use on process equipment such as sterilizers and other autoclaves, kettle cookers, food, chemical and laundry equipment. Their compact design makes them ideal when a fully stainless steel steam trap is required for air venting applications and condensate removal in small steam consumers. MAIN FEATURES Modulating discharge. Discharges condensate close to steam temperature. Thermostats for different sub coolings (5 to 30 ºC). Excellent air discharge. Operates with moderate superheated steam. Simple and compact design SIZES: DN 15 to DN 25 CONNECTIONS: Sandwiched between flanges as per EN 1092-1 PN 16 or PN 40
