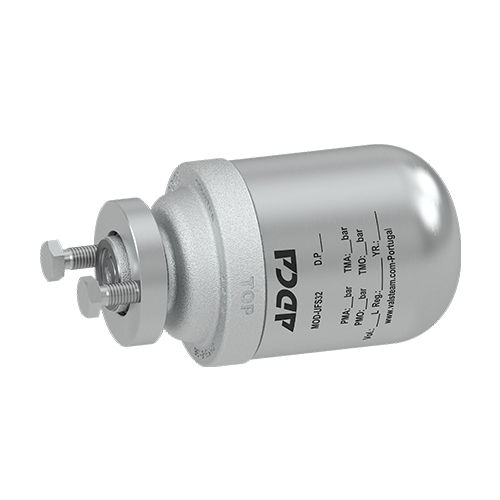

Air trap UFS32condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- float
- Other characteristics
- compact
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 32 bar
(464.12 psi)- Discharge capacity
Min.: 36 kg/h
(79 lb/h)Max.: 630 kg/h
(1,389 lb/h)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 245 °C
(473 °F)
Description
The UniADCA UFS32 series float and thermostatic (integral air vent) steam traps, completely in stainless steel, are maintenance free and sealed. They are specifically designed to work with low and medium pressure steam and all types of heating and process equipment. Typical applications include unit heaters, heat exchangers, driers, jacketed vessels and all the applications where continuous drainage is essential. These traps fit the UCX universal connectors and CTS4U compact stations. MAIN FEATURES Sealed, non-maintainable. Two-bolt swivel connector. Modulating discharge. Discharges condensate at steam temperature. Unaffected by sudden or wide load and pressure changes. Excellent air discharge (by thermostatic air vent).
