Condensate trap IBB12 serieswatersteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, water
- Operational mode
- automatic
- Type
- mechanical
- Operating pressure
Max.: 14 bar
(203.05 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 1,670 kg/h
(3,682 lb/h)Min.: 570 kg/h
(1,257 lb/h)- Operating temperature
Max.: 198 °C
(388 °F)Min.: 0 °C
(32 °F)
Description

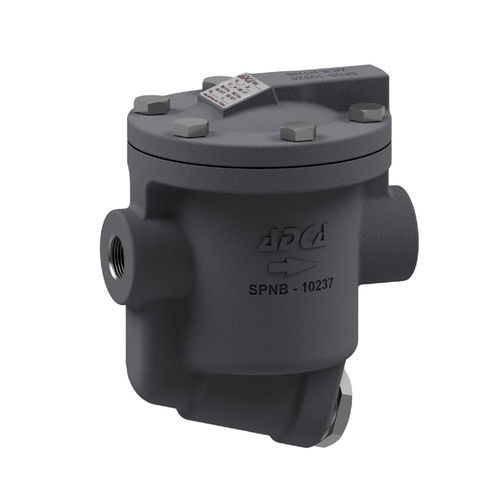

The IBB12 is a series of general purpose robust and versatile inverted bucket steam traps manufactured in SG iron. These steam traps operate intermittently and are suitable for use with saturated or superheated steam. Typical applications include drip points, steam tracing lines, dryers, chemical and laundry equipment. MAIN FEATURES Intermittent discharge. Discharges condensate at steam temperature. Unaffected by water hammer and vibrations. Easy to maintain.
Catalogs
IBB12
2 Pages
