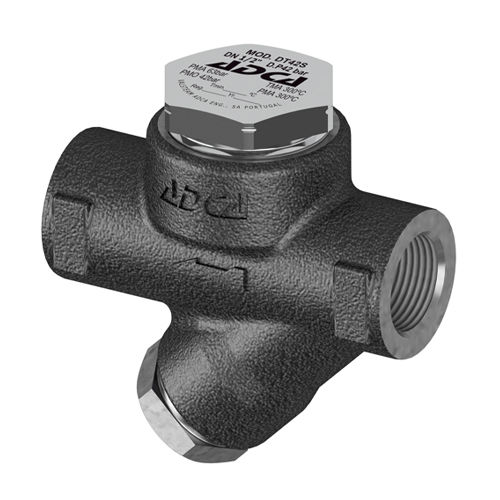

Steam trap DT42/2automaticthermostatichigh-pressure
Add to favorites
Compare this product
Characteristics
- Medium
- steam
- Operational mode
- automatic
- Type
- thermostatic
- Other characteristics
- compact, high-pressure
- Operating pressure
Max.: 42 bar
(609.16 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 1,040 kg/h
(2,293 lb/h)Min.: 180 kg/h
(397 lb/h)- Operating temperature
Max.: 300 °C
(572 °F)Min.: 0 °C
(32 °F)
Description
he ADCA DT42/2 thermodynamic disc steam traps are compact and lightweight-easy to install traps, excellent for high pressure systems, including steam tracing applications. These traps have only one moving part and offer a wide operating range, without adjustment. MAIN FEATURES Intermittent discharge. Operates on superheated steam. The seat and disc can be easily replaced in field without removing the trap from the line. Unaffected by water hammer and vibrations. Built-in easy-to-clean strainer.
CONNECTIONS:
Female threaded ISO 7 Rp or NPT
Flanged EN PN 40 or PN 63
Flanged ASME Class 150 or 300
Socket weld (SW) ASME B16.11
