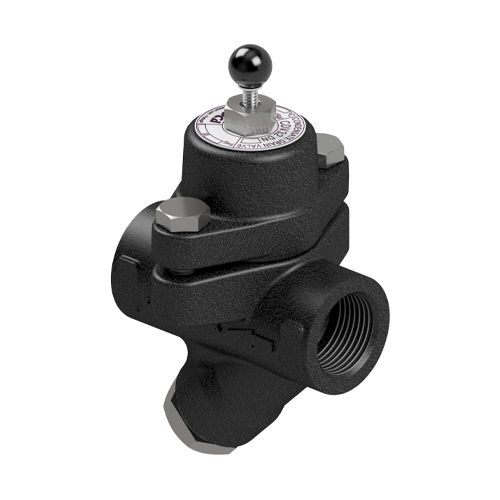

Air drain CDV32condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, air, steam
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 22 bar
(319.08 psi)- Discharge capacity
Min.: 220 kg/h
(485 lb/h)Max.: 780 kg/h
(1,720 lb/h)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 250 °C
(482 °F)
Description
The ADCA CDV32 condensate drain valve automatically discharges air and condensate from steam systems during start-up. A compression spring keeps the valve open when the system is not pressurized. As soon as the operating pressure reaches the closing pressure to which the CDV is set, the valve closes. If the operating pressure drops below the closing set pressure, the spring force will cause the CDV32 to open once again. MAIN FEATURES Hand purging knob allowing operation with system under pressure for dirt removal. Prevents vacuum and frost formation. Built-in, easy-to-clean strainer.
Catalogs
CDV32
2 Pages
