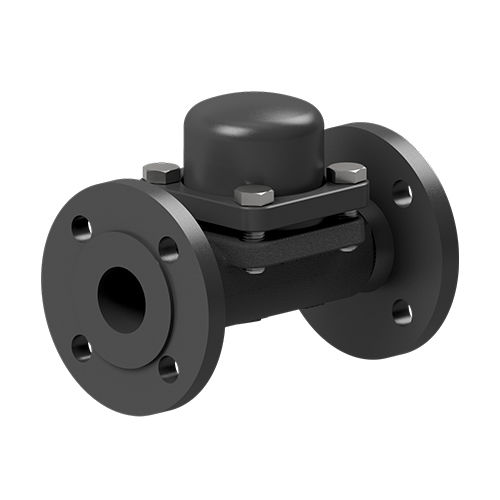

Air trap TH36condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- thermostatic
- Operating pressure
Max.: 22 bar
(319.08 psi)Min.: 0 bar
(0 psi)- Discharge capacity
Max.: 4,770 kg/h
(10,516 lb/h)Min.: 280 kg/h
(617 lb/h)- Operating temperature
Max.: 250 °C
(482 °F)Min.: 0 °C
(32 °F)
Description
The TH36 series thermostatic steam traps and air vents are specifically designed for use on process equipment such as kettle cookers, sterilizers, food, chemical and laundry equipment where high discharge capacities are involved. MAIN FEATURES Modulating discharge. Discharges condensate close to steam saturation temperature. Excellent air discharge. Operates with moderate superheated steam.
CONNECTIONS:
Threaded ISO 7 Rp or NPT
Flanged EN PN 40
Flanged ASME Class 150 or 300
Socket weld (SW) ASME 16.11
Butt weld (BW) ASME 16.25
Catalogs
TH36
2 Pages
