- VALSTEAM ADCA Engineering S.A.

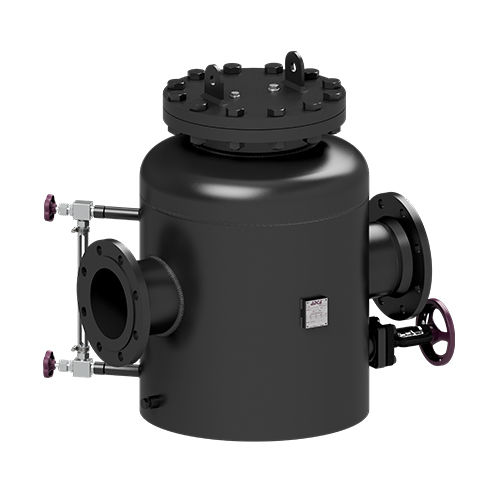

Air trap FLT151condensatesteamautomatic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate, steam, air
- Operational mode
- automatic
- Type
- float
- Operating pressure
Min.: 0 bar
(0 psi)Max.: 12 bar
(174.05 psi)- Discharge capacity
Min.: 18,800 kg/h
(41,447 lb/h)Max.: 50,000 kg/h
(110,231 lb/h)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 250 °C
(482 °F)
Description
he ADCA FLT151 is a series of high capacity float and thermostatic steam traps with integral air vent, designed for modulating discharge of condensate to ensure maximum system heat transfer. Specially designed for applications where continuous drainage is essential and extremely high loads are involved, such as those found in sugar and alcohol refineries. MAIN FEATURES High capacity. Modulating discharge of condensate at steam temperature. Unaffected by sudden or wide load and pressure variations. No backing-up with condensate. Excellent air discharge through its integrated thermostatic air vent
MATERIAL:
Carbon steel
SIZES:
4” and 6” – DN 100 and DN 150
CONNECTIONS:
Flanged EN 1092-1 PN 16
Flanged ASME B16.5 Class 150
Catalogs
FLT151
3 Pages
