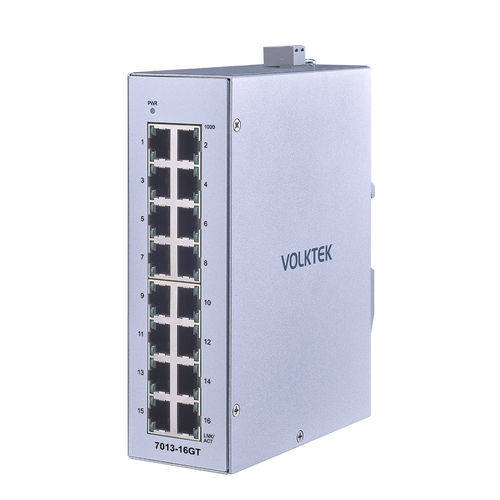

Unmanaged ethernet switch 7013-16GT-I

16 portsProfiNetDIN rail

Product Highlights 16 x 10/100/1000 RJ45 ports for multi-axis robots and their auxiliary machines like PLCs, HMI, and printers in automation Energy Efficient Ethernet (IEEE 802.3az) standard to reduce power consumption Flow Control keeps flow at a constant rate to avoid overflow Industrial QoS prioritizes PROFINET packets Operating temperatures -40˚C~75˚C (-40°F~167°F) and IP40 metal housing * The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F). Overview 7013-16GT-I is an unmanaged 16-port, 10/100/1000 RJ45 downlink industrial switch for communication between controllers and devices in automation settings. This high-dense port switch is used with multi-axis robots and their peripherals, such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications.The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and ensure stable transmission.This switch is built with industrial grade components, enclosed in an IP40 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40˚C~75˚C (-40°F~167°F) it suits extreme industrial applications. Features Robust Performance and Protection: 7013 Series is equipped with industrial grade components, enclosed with a rugged IP40 hardened housing to sustain in harsh industrial temperatures ranging between -40°C ~ 75°C, providing solid performance in mission-critical applications. Industrial Grade EMC Protection Design: 7013 Series is designed with efficient EMC protection to secure the device against electromagnetic failures occurred from various sources such as external lighting or transmission of static electricity between devices with different electrical potentials. Auto Negotiable Link Speed Control: To establish a fair and efficient communication among the devices which is having different link speeds, 7013 Series provides an auto negotiation feature which balances the data transmission speed between the switch and the connected PLCs. High Port Density: High port density allows users to connect multiple devices to one single switch for applications of complex structure. QoS: To guarantee the network works efficiently the device offer QoS features to guarantee that high-priority applications and proper traffic flow are carried out in networks with limited capacity. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.1p (Class of Service) Interface: 16 x 10/100/1000BASE-T (RJ45) ports, LED Panel: PWR Power: Input Voltage: Primary inputs: 12~48VDC; Connection: Terminal Block; Power Consumption: 15W; Reverse Polarity: Present Mechanical and Environment: Housing: Metal (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5~95% RH (non-condensing); Storage Humidity: 5~95% RH (non-condensing); Weight (w/ RJ45 cap): 900 g (2.18 lb); Weight (w/o RJ45 cap): 880 g (1.94 lb); Dimension (WxHxD): 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in) Ordering Information ModelDescription7013-16GT-IUnmanaged 16 x 10/100/1000 RJ45 Industrial Switch *Specifications subject to change without prior notice. Key Technical Characteristics / Specifications Model: 7013-16GT-I Type: Unmanaged Industrial Ethernet Switch Ports: 16 x 10/100/1000BASE-T (RJ45) Housing: Metal, IP40 protection Mounting: DIN-Rail Operating Temperature: -40°C~75°C (-40°F~167°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating/Storage Humidity: 5~95% RH (non-condensing) Input Voltage: 12~48VDC Power Consumption: 15W Weight: 900 g (w/ RJ45 cap), 880 g (w/o RJ45 cap) Dimensions: 50 x 160 x 120 mm (1.97 x 6.3 x 4.72 in) Certifications: UL, ROHS, CE, FC
