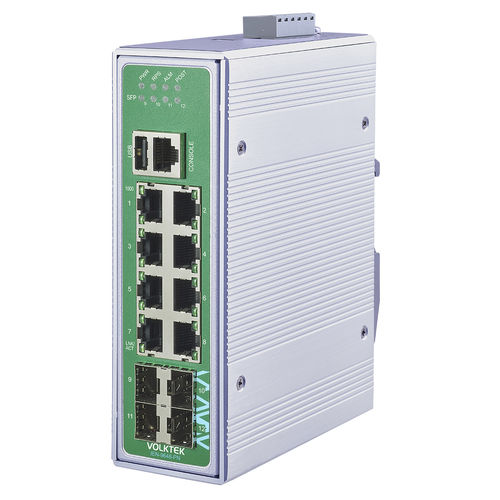

Managed ethernet switch IEN-9648-PN

12 portsgigabit EthernetProfiNet

Product Highlights:

8 x 10/100/1000 RJ45 ports - 30 Watts max. output power/port

4 x GbE SFP uplink ports for long-distance connectivity to control center and cascading

1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files

Optimizes network performance with Storm and Flow Control and QoS for enough bandwidth - DIP control lets users decide important port settings by pushing a simple switch

PROFINET Approval, communication standard in industrial applications

Operating temperatures -40˚C~75˚C (-40F~167F) and IP30 Aluminum housing * The highest degree of temperature operation certified by UL is -40˚C~70˚C (-40F~158F).

Overview:

IEN-9648-PN is a high-performance managed industrial switch with 8 x 10/100/1000BASE-T RJ45 ports and 4 x GbE SFP slots, designed for communication between controllers and devices in automation settings using the PROFINET protocol. The SFP port offers long-distance, noise-free fiber transmissions that adapt to Fast and Gigabit Ethernet speeds. It is used with industrial devices such as PLCs, HMIs, and legacy devices.

The switch offers various in-built traffic optimization and network performance features to prioritize important data packets, prevent the loss of data during communication, and stabilize transmission. It is compatible with third-party devices, which can be easily identified with the help of the Topology map. This device complies with cybersecurity standards to safeguard the network from vulnerabilities and protect your assets.

This switch is built with industrial-grade components and enclosed in an IP30 aluminum case with high thermal conductivity, which protects the device from tools and hazards. This device uses PROFINET packets to communicate with other devices and meets industrial requirements. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40˚C~75˚C (-40F~167F), it suits extreme industrial applications. To ensure reliability, the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails.
