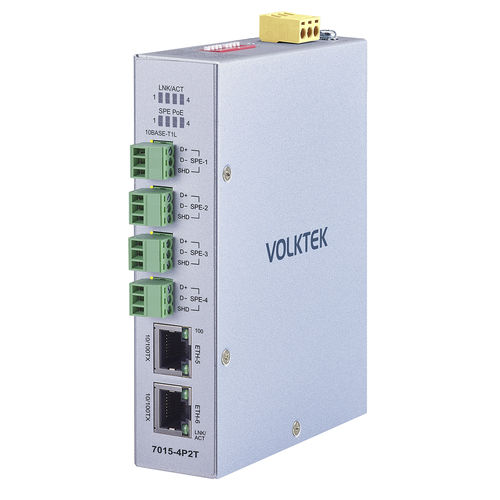

Unmanaged switch 7015-4P2T-T1L

6 portsEtherNet/IPIP40

Product Highlights

• Flexible Ports & Control: Equipped with 4 x 10BASE-T1L SPoE and 2 x 10/100 RJ45 ports, with DIP switches for easy Auto and Master/Slave mode configuration
• Long-Reach SPE: IEEE 802.3cg compliant, delivering 10 Mbps connectivity over existing fieldbus wiring up to 1000 m to reduce cabling costs
• Seamless Integration: Interoperates with existing industrial networks using standard CAT5/6 cabling for smooth data convergence
• Compact & Clear Design: Space-saving IP40 metal housing with high thermal conductivity and clear LED status indicators
• Operating temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Overview
The IEEE 802.3cg Single Pair Ethernet (SPE) standard defines Ethernet operation over a single twisted wire pair for industrial control networks. It enables 10 Mbps Ethernet communications over existing fieldbus cables up to 1000 m, significantly longer than standard 100BASE-TX. Our unmanaged SPE switch extends this capability by incorporating Single-pair Power over Ethernet (SPoE) technology, supporting power classes 10-12 with 24 V delivery or power classes 13-14 with 55 V delivery to powered devices. This combination provides both data connectivity and substantial power delivery over the same single-pair infrastructure. By running Ethernet and power over existing fieldbus wiring, the SPE switch with SPoE simplifies cabling and reduces costs, expanding Industrial Ethernet to sensors, actuators and automation applications that require both low-speed connectivity and power without additional wiring. It interoperates with existing Ethernet networks over standard CAT5/6 cabling.

Features / Key Application Domains

• Industrial Automation: Supports sensor networks (temperature, humidity, pressure, flow), actuators, flowmeters, pressure transmitters, small motors, and remote I/O modules
• Building Automation: Powering and connecting LED drivers, dimming controllers, occupancy sensors, door contacts, card readers, electronic locks, access control panels, IP and PTZ cameras
• Traffic Infrastructure: Enabling traffic signals, roadside sensors, environmental monitoring, traffic controllers, small information displays, and digital signage
• IoT and Edge Devices: Supporting environmental monitors, asset trackers, edge gateways, local data processing nodes, HVAC controllers and security sensors
• Industrial Control Networks: Integrating with standardized industrial protocols (e.g., PROFINET, EtherNet/IP) at the field level for simultaneous data and power transmission

Ordering Information
Model: 7015-4P2T-T1L
Description: Unmanaged 4 x 10BASE-T1L SPoE & 2 x 10/100 RJ45 Industrial SPoE Switch

Specifications / Technical data

• Standards: IEEE 802.3, IEEE 802.3u (100BASE-TX), IEEE 802.3cg (10BASE-T1L compliant), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control)
• Ports: 2 x 10/100 RJ45 ports; 4 x 10BASE-T1L SPoE ports
• DIP Switch: 1 x SPoE Functionality; 1 x SPoE Class Selection; 4 x Auto/Manual Mode; 4 x Master/Slave Role
• LED Panel: PWR, 100, LNK/ACT, SPoE
• Input Voltage: 20-30 VDC (Class10-12) or 50-58 VDC (Class13-14)
• Power Consumption: 4 W (system only)
• SPoE Power Budget: 132 W total
• Max. Power Per Port: 24 V: 57 W; 55 V: 33 W
• Housing: Metal (IP40 protection)
• Operating Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)
• Operating Humidity: 5 ~ 95% RH (non-condensing)
• Storage Humidity: 5 ~ 95% RH (non-condensing)
• Weight: 525 g (1.16 lb)
• Dimension (WxHxD): 31 x 136 x 105 mm (1.22 x 5.36 x 4.13 in)
