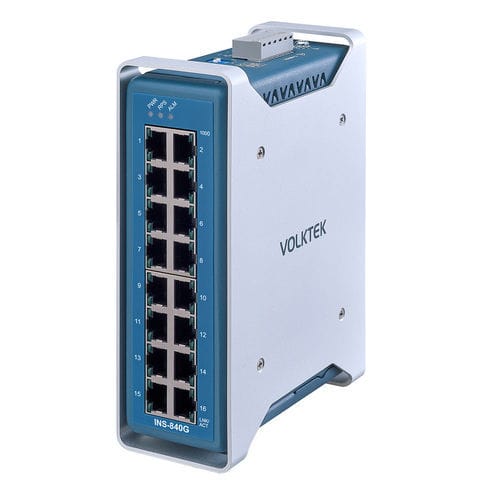

Unmanaged ethernet switch INS-840G

16 portsDIN railDIP

Product Highlights 16 x 10/100/1000 RJ45 ports for multi-axis robots and their auxiliary machines like PLCs, HMI, and printers in automation Industrial Unmanaged Ethernet Switch Flow Control keeps flow at a constant rate to avoid overflow Prevents packet loss with VLAN Passthru by forwarding VLAN packets Operating temperatures -40°C~75°C (-40°F~167°F) and IP40 Protection Overview INS-840G is an unmanaged 16-port, 10/100/1000 RJ45 downlink industrial switch for communication between controllers and devices in automation settings. This high port density switch is used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications.The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and stable transmission. The device prevents packet loss with VLAN Passthru by forwarding VLAN packets.This switch is built with industrial-grade components, enclosed in an IP40 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, and temperatures ranging from -40°C~75°C (-40°F~167°F) it suits extreme industrial applications. Features Robust Electrical and Electromagnetic Safeguard: Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity. Redundant Power System: Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm. Auto Negotiable Link Speed Control: Auto negotiation of transmission speed between the switch and the connected PLC (Programmable Logic Controller). Advanced QoS Support: QoS (Quality of Service) for efficient data transmission to mission-critical applications. Eco-friendly Green Ethernet Technology: IEEE802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology for automatic adjustment of power consumption. Reliable IP40-Rated Industrial Switch for Critical Environments: The IP40-rated industrial switch is designed to deliver dependable performance in critical environments where protection against solid particles is essential. Its durable enclosure shields the device from dust, debris, and electromagnetic interference, ensuring smooth operation in high-demand settings such as factories, control rooms, and mission-critical facilities. The switch provides robust protection against objects larger than 1 millimeter. With features like wide temperature tolerance, this industrial switch is ideal for maintaining uninterrupted data transmission in challenging, high-stakes environments. Specifications Standards: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE 802.3ab, 1000BASE-T, IEEE 802.3 Nway Auto-negotiation, IEEE 802.3x Flow Control Interface: 16 x 10/100/1000BASE-T (RJ45) ports; DIP Switch for Primary/Redundant (PWR/RPS) power voltage and drop alarm setting; LED Panel: PWR, RPS, ALM, 1000, LNK/ACT Power: Input Voltage: Primary inputs: 12~60VDC, Redundant inputs: 12~60VDC; Connectors: Terminal Block; Power Consumption: 18W (12V/1A); Reverse Polarity: Present; Overload current: Present; Alarm Relay: One relay output, 1 A @ 24VDC Mechanical and Environment: Housing: Aluminum (IP40 protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5~95% RH (non-condensing); Storage Humidity: 5~95% RH (non-condensing); Weight: 918 g (2.02 lb); Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in) Ordering Information ModelDescriptionINS-840GUnmanaged 16 x 10/100/1000 RJ45 Industrial Switch Specifications are subject to change without prior notice. Key Technical Features 16 x 10/100/1000 RJ45 ports Industrial Unmanaged Ethernet Switch VLAN Passthru support IP40-rated aluminum housing Operating temperature: -40°C~75°C Redundant power inputs: 12~60VDC DIN-Rail mounting Power consumption: 18W Weight: 918 g Dimensions: 57.3 x 175 x 126.4 mm
