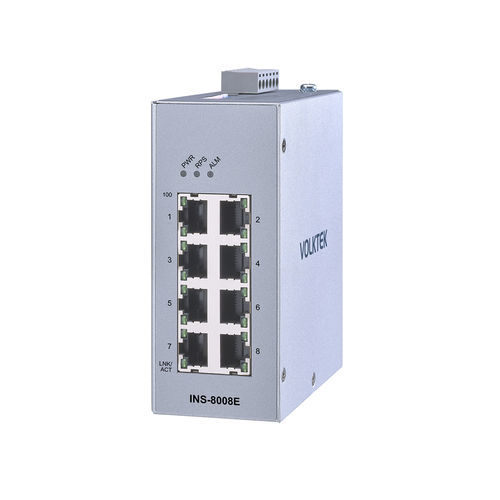

Unmanaged ethernet switch INS-8008E

8 portsProfiNetfast ethernet

Product Highlights - 8 x 10/100 RJ45 ports for Fast Ethernet speed application devices with Premium features - Auto-negotiation ports allow operation without extra device installation - Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control - Prevents packet loss with VLAN Pass-through by forwarding VLAN packets - Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets), per-port priority, 802.1p Tag - Operating temperatures -40°C~75°C (-40°F~167°F) and IP40 metal housing Overview INS-8008E is a premium unmanaged 8-port, 10/100 RJ45 downlink industrial switch for very elementary interconnection between devices with Premium features. It offers auto-negotiation on all its ports to aggregate devices easily in industrial Ethernet applications. The switch offers in-built traffic optimization to have stable performance and prevents packet loss by transporting VLAN packets without modifying them. Additionally, it prioritizes data with industrial QoS priority for Ethernet/IP, PROFINET, and GOOSE packets. This switch is built with industrial grade components, enclosed in an IP40 metal case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40°C~75°C (-40°F~167°F) it suits extreme industrial environments. Features - Protected Against Unpredictable and Harsh Environment Engineered to withstand electrostatic discharge, power surge, over-voltage, over-current, high-vibration, and reverse polarity in the event of an accident. - Simple Installation and Compact Size Auto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs. - Broadcast Storm Monitors traffic storm levels of the incoming broadcast packet rate and limits over an interval of time to prevent unnecessary traffic and safeguard performance. Specifications - Standards: - IEEE 802.3 - 10BASE-T - IEEE 802.3u - 100BASE-TX - IEEE 802.3 (Nway Auto-negotiation) - IEEE 802.3x (Flow Control) - IEEE802.1p (Class of Service) - Interface: - Ports: 8 x 10/100BASE-TX (RJ45) - DIP Switch: PWR, RPS, P1 ~ P8 - LED Indicator: PWR, RPS, ALM, 100, LNK/ACT - Power: - Input Voltage: Primary input 12~48VDC, Redundant input 12~48VDC - Connector: Terminal Block - Max Power Consumption: 5W - Alarm Relay: One relay output, 1A @ 24V DC - Reverse Polarity Protection: Present - Over Load Protection: Present - Mechanical and Environment: - Housing: Metal (IP40 protection) - Mounting: DIN-Rail - Operating Temperature: -40°C~75°C (-40°F~167°F) - Storage Temperature: -40°C~85°C (-40°F~185°F) - Operating Humidity: 5 to 95% RH (non-condensing) - Storage Humidity: 5 to 95% RH (non-condensing) - Weight: 480 g (1.06 lb) - Dimension (WxHxD): 50 x 116 x 100 mm (1.97 x 4.57 x 3.93 in)
