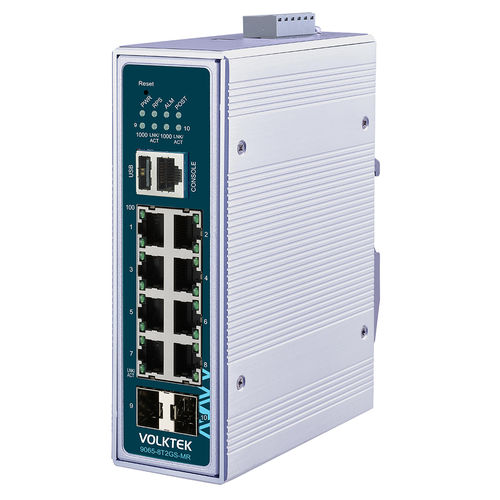

Managed switch 9065-8T2GS-MR

8 ports2 portlayer 2

Key features

• 8 x 10/100 RJ45 ports and 2 x FX/GbE SFP fiber ports for mixed copper/fiber networks
• L2+ managed functions: SNMP, VLAN, ACL and QoS for traffic segregation and control
• Redundancy and ring protection with loop detection and recovery timer
• DNV Marine approval for use in marine environments
• Wide operating range -40°C to 75°C; rugged aluminum enclosure (IP40)

Overview
The 9065-8T2GS-MR is a managed industrial Ethernet switch designed for mission-critical marine and industrial installations. It provides 8 x 10/100 RJ45 ports and 2 x FX/GbE SFP slots, dual LEDs per port for status indication, a relay output for event alarms and USB for configuration backup. The unit is DNV Marine approved and built to withstand vibration and shock common in maritime applications.

Technical features

• SNMP management for integration with third-party monitoring systems
• VLAN (802.1Q, protocol-based, QinQ) and advanced Layer 2 mechanisms (STP/RSTP/MSTP)
• ACL filtering (L2/L3/L4) and IEEE 802.1X port authentication
• RMON support for traffic analysis and historical data
• Dual fiber port support for redundant fiber links and ring-aware protection (G.8032)
• IEEE 1588v2 support for time synchronization where required

Applications

• Shipboard networks and maritime control systems
• Harbor infrastructure and offshore platforms
• Industrial automation in corrosive or vibration-prone environments

Ordering information
9065-8T2GS-MR | Managed 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch, DNV Marine Approval, USB support


Notes

• Operating temperature certified by UL: -40°C to 75°C; DNV (Class D) rating: -25°C to 70°C
• Nominal voltage for DNV type approval: 24 VDC; primary and redundant input range: 12–48 VDC
• Enclosure protection: IP40 (aluminum housing); DNV type approval with IP20 ingress rating

Specifications

• Standards: IEEE 802.3, 802.3u, Auto-Negotiation, Flow Control
• Layer & VLAN: 802.1D/w/s, 802.1Q, 802.1v, 802.1ad, 802.1p
• Aggregation & discovery: 802.3ad (LACP), 802.1ab (LLDP)
• Ring/Protection: ITU-T G.8032 (ERPS)
• Security & timing: 802.1X, IEEE 1588v2 (PTP)
• Energy: IEEE 802.3az EEE
• Interfaces: 8 x 10/100 RJ45, 2 x FX/GbE SFP, 1 x RS232 console, 1 x USB
• DIP switch: power alarm settings
• LEDs: PWR, RPS, ALM, POST, 100, 1000, LNK/ACT
• Power consumption: 18 W
• Power input: 12–48 VDC (nominal 24 VDC for marine)
• Housing: Aluminum (IP40); Mounting: DIN-rail
• Operating temperature: -40°C to 75°C; Storage: -40°C to 85°C
• Operating humidity: 5–95% RH non-condensing
• Weight: 970 g; Dimensions: 50 x 161.5 x 119.9 mm
