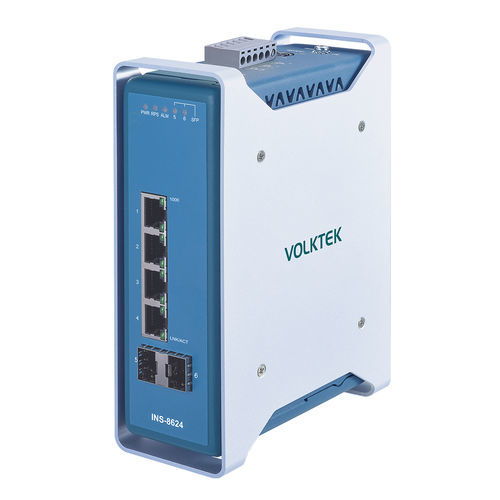

Managed ethernet switch INS-8624

6 portsgigabit EthernetDIN rail

Product Highlights 4 x 10/100/1000 RJ45 ports and 2 x FX/GbE SFP uplink ports for long-distance connectivity to control devices Topology Map for network monitoring Optimizes network performance with Storm and Flow Control and QoS Operating temperature -40˚C~75˚C (-40°F~167°F) and an IP40 Aluminum housing Overview INS-8624 is a high-performance 4-port 10/100/1000 RJ45 downlink, and 2-port multi-rate FX/GbE SFP uplink managed industrial switch designed for communication between controllers and devices in automation settings. The SFP ports offer long-distance, noise-free fiber transmissions that adapt to Fast and Gigabit Ethernet speeds. It is used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial Ethernet applications. The switch optimizes traffic with Storm, Flow Control, and QoS - it prioritizes industrial data packets, prevents the loss of data during communication, and offers a stable transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities. This switch is built with industrial-grade components and enclosed in an IP40 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40˚C~75˚C (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Features Robust Electrical and Electromagnetic Safeguard: Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity. Redundant Power System: Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm. Fiber Connectivity with Dual SFP Ports: Dual Gigabit SFP slots for future expansion of fiber-based daisy chain topologies. Port-based and IEEE 802.1Q VLAN: GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains. Efficient Traffic Prioritization: Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX, 100BASE-FX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication) Interface: 4 x 10/100/1000BASE-T (RJ45), 2 x GbE SFP Slots, DIP Switch (Primary/Redundant Power Voltage Drop Alarm setting), LED Panel (PWR, RPS, ALM, SFP, 1000, LNK/ACT) Power: Input Voltage: Primary inputs: 20~57VDC, Redundant inputs: 20~57VDC; Connection: Terminal Block; Power Consumption: System: 10W; Alarm Relay: One relay output, 1 A @ 24V DC Mechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 795 g (1.75 lb); Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in) Ordering InformationModelDescriptionINS-8624Managed 4 x 10/100/1000 RJ45 & 2 x FX/GbE SFP Switch *Specifications subject to change without prior notice. Technical Characteristics / Specifications 4 x 10/100/1000 RJ45 ports 2 x FX/GbE SFP uplink ports Topology Map for network monitoring Storm and Flow Control, QoS Operating temperature: -40˚C~75˚C (-40°F~167°F) IP40 Aluminum housing Redundant power supply and alarm relay DIN-Rail mounting Weight: 795 g (1.75 lb) Dimensions: 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)
