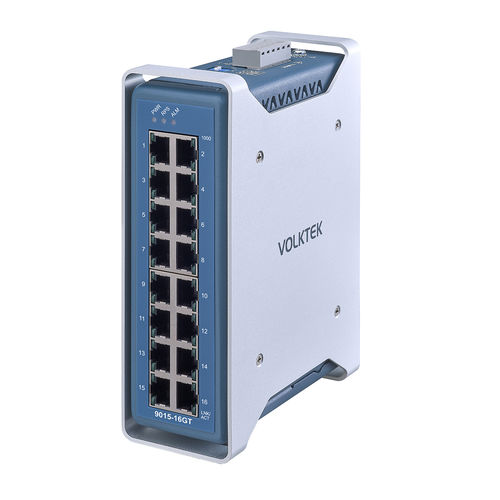

Managed ethernet switch 9015-16GT-I

16 portsDIN railDIP

Product Highlights 16 x 10/100/1000 RJ45 ports for multi-axis robots and industrial devices like PLCs, HMI, and printers in automation Helps users to monitor the network devices with a Topology Map, compatible with third-party devices Optimizes network performance with Storm and Flow Control and QoS Redundant Power Supply and Alarm Relay Contact on Terminal Block to ensure non-stop operations Operating temperature -40°C~75°C (-40°F~167°F) and IP40 protection Overview 9015-16GT-I is a high-performance 16-port 10/100/1000 RJ45 downlink managed industrial switch designed for communication between controllers and devices in automation settings. It is appropriate for multi-axis robots and their peripherals, such as PLCs, HMIs, or legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial Ethernet applications. The switch optimizes traffic and prioritizes industrial data packets, prevents the loss of data during communication, and offers a stable transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities. This switch is built with industrial-grade components and enclosed in an IP40 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40°C~75°C (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Features Resistant to Industrial Environments: Tested and certified for safe use in demanding conditions, engineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current, and reverse polarity in the event of an accident. It operates at a wide temperature range from -40°C~80°C (-40°F~176°F). Secure Remote Management Control: Provides secure features like SSH, HTTPs, SNMPv3, 802.1X, TACACS+ that allow users to navigate the switch with protection, keeping the network safe from attacks. Network Monitoring Tools: Tools like Cable Test, Multicast Address and MAC Flapping help users to identify issues that can impact an industrial process. Redundant Power Supply: Designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working, the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1AB (LLDP), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 802.1ad (QinQ) Interface: 16x10/100/1000BASE-T (RJ45) ports; DIP Switch for Primary, Redundant Power and Drop Alarm Setting; LED Panel: PWR, RPS, ALM, 1000, LNK/ACT Power: Input Voltage: Primary inputs: 12~60V DC, Redundant inputs: 12~60V DC; Connection: Terminal Block; Power Consumption: 18W (12V/1.5A); Alarm Relay: 1A @ 24V DC Mechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating/Storage Humidity: 5 to 95% RH (non-condensing); Weight: 918 g (2.02 lb); Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in) Ordering Information ModelDescription9015-16GT-IManaged 16 x 10/100/1000 RJ45 Industrial Switch Operating temperature: -40°C~75°C (-40°F~167°F)DIN Rail mountingIP40 protectionQoS supportRedundant PowerSurge ProtectionModbus supportTopology MapROHS, CE, FC certified Technical Specifications Model: 9015-16GT-I Managed 16 x 10/100/1000 RJ45 Industrial Switch IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, 802.1AB, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1X, 802.1ad compliant 16x10/100/1000BASE-T (RJ45) ports Input Voltage: 12~60V DC (Primary and Redundant) Power Consumption: 18W (12V/1.5A) Alarm Relay: 1A @ 24V DC Housing: Aluminum (IP40 Protection) Mounting: DIN-Rail Operating Temperature: -40°C~75°C (-40°F~167°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating/Storage Humidity: 5 to 95% RH (non-condensing) Weight: 918 g (2.02 lb) Dimensions: 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in)
