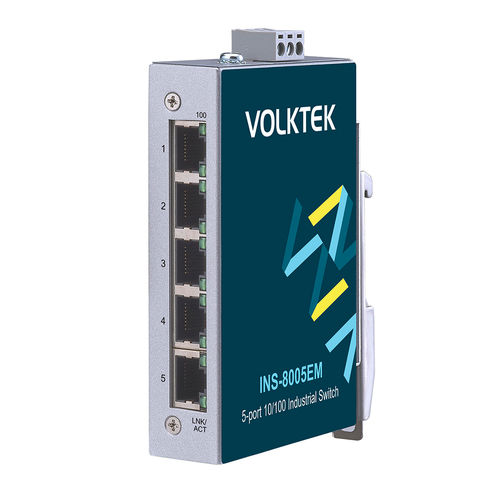

Unmanaged switch INS-8005EM

5 portsfast ethernetDIN rail

Overview
INS-8005EM is an unmanaged industrial Fast Ethernet switch with 5 auto-negotiation 10/100 Mbps RJ45 ports. It is designed to expand Ethernet networks in constrained industrial environments, providing protocol prioritization for industrial traffic and built-in protections against harsh conditions.

Product Highlights

• 5 x 10/100 RJ45 ports for Fast Ethernet devices
• Auto-negotiation and Auto MDI/MDI-X for simple connectivity
• Flow control and storm control to maintain steady traffic and avoid packet overflow
• VLAN Passthru forwards VLAN-tagged packets without modification to prevent packet loss
• Industrial QoS supporting Ethernet/IP, PROFINET and GOOSE, plus per-port priority and 802.1p tagging
• DNV Marine Approval for marine communication standards
• Operating range -40°C to 75°C and aluminum housing with IP40 protection

* UL-certified operating temperature range: -40°C~75°C (-40°F~167°F); DNV (Class D) rating: -25°C~70°C (-13°F~158°F)
* Nominal 24VDC specified for DNV type approval
* Enclosure rated IP40; DNV type approval corresponds to IP20 ingress protection

Features

• Accident protection against electromagnetic interference, electrostatic discharge, power surge and over-current events
• Redundant power input via industrial terminal block with dual-supply support and alarm output
• Compact DIN-rail design for space-constrained installations
• Comprehensive QoS (IEEE 802.1p) to prioritize time-sensitive industrial data

Ordering Information
Model: INS-8005EM
Description: Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch, DNV Marine Approval

Technical specifications

• Standards: IEEE 802.3; 10BASE-T; IEEE 802.3u; 100BASE-TX; Nway Auto-negotiation; IEEE 802.3x Flow Control; IEEE 802.1p Class of Service
• Ports: 5 x 10/100BASE-TX (RJ45)
• LEDs: PWR, 100, LNK/ACT
• Input voltage: 12~48VDC (Nominal 24VDC for marine use)
• Connector: Terminal block
• Max power consumption: 3W
• Reverse polarity protection: Yes
• Overload protection: Yes
• Housing: Aluminum (IP40)
• Mounting: DIN-rail
• Operating temperature: -40°C~75°C (-40°F~167°F)
• Storage temperature: -40°C~85°C (-40°F~185°F)
• Operating humidity: 5 to 95% RH (non-condensing)
• Storage humidity: 5 to 95% RH (non-condensing)
• Weight: 183.4 g
• Dimensions (W x H x D): 23.6 x 109.2 x 73.8 mm
