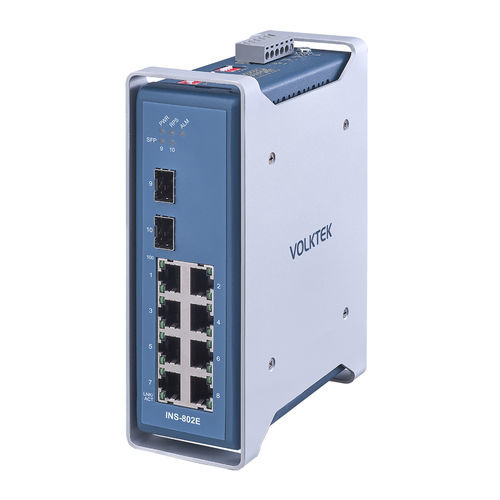

Unmanaged ethernet switch INS-802E

10 portsProfiNetfast ethernet

Product Highlights 8 x 10/100 RJ45 & 2 x FX/GbE SFP ports for Fast Ethernet speed application devices with Premium features Auto-negotiation ports allow operation without extra device installation Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control Prevents packet loss with VLAN Pass-through by forwarding VLAN packets Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets), per-port priority, 802.1p Tag Operating temperatures -40˚C~75˚C (-40°F~167°F) and aluminum housing Overview The INS-802E is an unmanaged industrial switch equipped with 8-port 10/100Base-TX, and 2-port FX/GbE SFP, dual fiber uplinks and redundant DC power inputs, an ideal solution for deployment in multiple high-speed automation systems. With its dry-contact smart alarm, the INS-802E initiates an alarm function that can be seen and heard on the factory floor in the event of any malfunction. The INS-802E operates in wide temperatures ranging from -40°C to 75°C and absorbs higher than average degrees of vibration and shock, making it perfectly suitable and safe choice for harsh industrial environments.This switch is built with industrial-grade components, enclosed in an IP40 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40℃~75℃ (-40°F~167°F) it suits extreme industrial environments. Features It's Accident ProofEngineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident. Redundant Power SystemTo guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event. Simple Installation and Compact SizeAuto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs. Comprehensive QoSSupports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic. Specifications Standards: IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX/FX) IEEE 802.3z (1000Base-SX/LX) IEEE 802.3 (Nway Auto-negotiation) IEEE 802.3x (Flow Control) IEEE802.1p (Class of Service) Interface: Ports: 8 x 10/100Base-TX (RJ45), 2 x FX/GbE (SFP) Power: Input Voltage: Primary inputs: 12 ~ 48VDC, Redundant inputs: 12 ~ 48VDC Connection: Terminal block Power Input Polarity Protection: Present Power Voltage Drop Alarm: Present Power Consumption: 6W (Max) Alarm Relay: One relay output, 1 A @ 24V DC ESD Protection: Present Mechanical and Environment: Housing: Aluminum (IP40 protection) Mounting: DIN-Rail Operating Temperature: -40°C to 80°C Storage Temperature: -40°C to 85°C Operating Humidity: 5 to 95% RH (non-condensing) Storage Humidity: 5 to 95% RH (non-condensing) Weight: 791 g (1.74 lb) Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in) Ordering Information ModelDescriptionINS-802EPremium Unmanaged 8 x 10/100 RJ45 & 2 x FX/GbE SFP Industrial Switch Certifications & Features Icons -40°C-75°C Auto Negotiation DIN Rail ESD Protection IP Code 40 Ports Priority QoS Redundant Power Surge Protection Wall Mount ROHS CE FC Technical Specifications Model: INS-802E Type: Premium Unmanaged Industrial Switch Ports: 8 x 10/100 RJ45, 2 x FX/GbE SFP Redundant DC Power Inputs: Yes Alarm Relay: Yes Operating Temperature: -40°C to 75°C Housing: Aluminum, IP40 Mounting: DIN-Rail Power Consumption: 6W (Max) Weight: 791 g Dimensions: 57.3 x 175 x 126.4 mm
