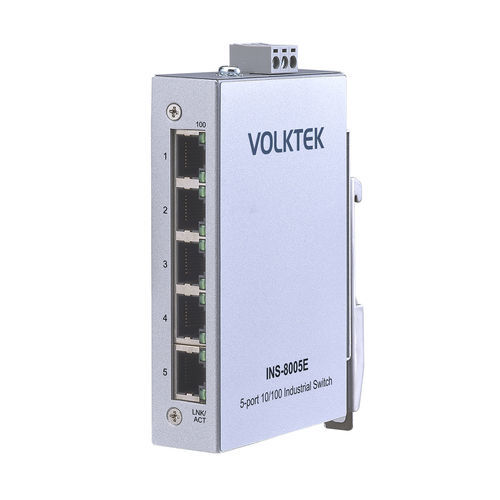

Unmanaged ethernet switch INS-8005E

5 portsProfiNetfast ethernet

Product Highlights 5 x 10/100 RJ45 ports for Fast Ethernet speed application devices with Premium features Auto-negotiation ports allow operation without extra device installation Keeps flow at a constant rate to avoid overflow and prevents data storms with Flow and Storm Control Prevents packet loss with VLAN Passthru by forwarding VLAN packets without dropping or modifying them Industrial QoS (EIP (EtherNet/IP), PROFINET, and GOOSE packets), per-port priority, 802.1p Tag Operating temperatures -40˚C~75˚C (-40°F~167°F) and IP40 aluminum housing * The highest degree of temperature operation certified by UL is -40˚C~75˚C (-40°F~167°F). Overview INS-8005E is an unmanaged 5-port, 10/100 RJ45 downlink industrial switch with Premium features for very elementary interconnection between devices, but high traffic requirements. It offers auto-negotiation on all its ports to aggregate devices easily in Industrial Ethernet applications. The device can be used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. Additionally, it offers auto-negotiation on all its ports to aggregate devices easily in industrial ethernet applications. Prioritizes data with industrial QoS priority for Ethernet/IP, PROFINET, and GOOSE packets.The switch offers various in-built traffic optimization and network performance features to prioritize important industrial data packets, prevent the loss of data during communication, and stable transmission; like flow control and VLAN Passthru. It prioritizes industrial protocols for industrial applications, like Ethernet/IP, PROFINET, and GOOSE packets. Additionally, it offers per-port and 802.1p Tag Quality of Service to ensure the delivery of high-priority data.This switch is built with industrial grade components, enclosed in an IP40 aluminum case to protect the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40˚C~75˚C (-40°F~167°F) it suits extreme industrial environments. Features It's Accident ProofEngineered to withstand electromagnetic interference, electrostatic discharge, power surge, over-voltage, over-current in the event of an accident. Redundant Power SystemTo guarantee power runs continuously the switch is designed to be simultaneously connected to two power supplies and an alarm through a standard industrial terminal block. If one power supply stops working the switch will start feeding its power on the alternative power supply and the alarm will go off to notify technicians about the event. Simple Installation and Compact SizeAuto MDI/MDI-X (medium dependent interface / MDI crossover) on all ports for simple connection to other switches and hubs. Comprehensive QoSSupports IEEE 802.1p Quality of Service (QoS) which enhances bandwidth utilization to ensure time-sensitive data gets delivered efficiently to mission-critical applications without any delay even during a burst of high traffic. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3 (Nway Auto-Negotiation), IEEE 802.3x (Flow Control), IEEE 802.1p (Class of Service) Interface: 5 x 10/100BASE-TX (RJ45) ports, LED Panel: PWR, 1000, LNK/ACT Power: Input Voltage: 12~48VDC, Connector: Terminal Block, Max Power Consumption: 3W, Reverse Polarity Protection: Present, Over Load Protection: Present Mechanical and Environment: Housing: Aluminum (IP40 Protection), Mounting: DIN-Rail, Wall Mount, Operating Temperature: -40°C~75°C (-40°F~167°F), Storage Temperature: -40°C~85°C (-40°F~185°F), Operating Humidity: 5 to 95% RH (non-condensing), Storage Humidity: 5 to 95% RH (non-condensing), Weight: 183.4 g (0.4 lb), Dimension (WxHxD): 23.6 x 109.2 x 73.8 mm (0.93 x 4.3 x 2.90 in) Ordering Information ModelDescriptionINS-8005EPremium Unmanaged 5 x 10/100 RJ45 Industrial Switch Certifications Technical Specifications Model: INS-8005E Type: Premium Unmanaged 5 x 10/100 RJ45 Industrial Switch Ports: 5 x 10/100BASE-TX (RJ45) Input Voltage: 12~48VDC Max Power Consumption: 3W Housing: Aluminum (IP40 Protection) Mounting: DIN-Rail, Wall Mount Operating Temperature: -40°C~75°C (-40°F~167°F) Storage Temperature: -40°C~85°C (-40°F~185°F) Operating Humidity: 5 to 95% RH (non-condensing) Weight: 183.4 g (0.4 lb) Dimensions: 23.6 x 109.2 x 73.8 mm (0.93 x 4.3 x 2.90 in)
