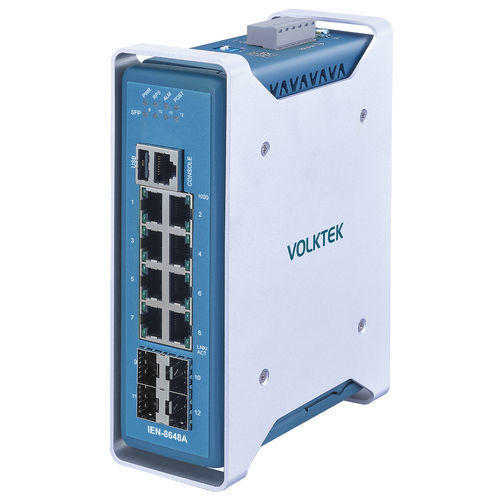

Managed ethernet switch IEN-8648A

12 portsDIN railDIP

Product Highlights 8 x 10/100/1000 RJ45 ports and 4 x GbE SFP uplink ports for long-distance to control devices and daisy chain 1 x Console Port for command-line interface and USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files Topology Map for network monitoring Optimizes network performance with Storm and Flow Control and QoS Operating temperature -40˚C~75˚C (-40°F~167°F) and IP40 Aluminum housing Overview INS-8648A is a high-performance 8-port 10/100/1000 RJ45 downlink, and 4-port GbE SFP uplink managed industrial switch designed for communication between controllers and devices in automation settings. It is used with multi-axis robots and their peripherals such as PLCs, HMIs, and legacy devices. It offers auto-negotiation on all its ports and Modbus TCP to aggregate devices easily in industrial Ethernet applications. The switch offers various in-built traffic optimization and network performance features to prioritize important data packets, prevent the loss of data during communication, and stabilize transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities. The RJ45 type console port allows outbound network troubleshooting when networks go wrong. The USB port supports firmware upgrade, keeps configuration settings safe, and downloads log files to manage network status offline. The switch optimizes traffic with Storm, and Flow Control, and QoS - it prioritizes industrial data packets, prevents the loss of data during communication, and offers a stable transmission. It has a topology map to visualize the network and complies with cybersecurity standards to safeguard the network from vulnerabilities. This switch is built with industrial-grade components and enclosed in an IP40 aluminum case with high thermal conductivity, which protects the device from tools and hazards. Designed to withstand vibration, shock, free fall, interference, and temperatures ranging from -40˚C~75˚C (-40°F~167°F), it suits extreme industrial applications. To ensure reliability the redundant power supply and alarm relay contact on the terminal block ensures non-stop operations and issues alerts if power fails. Features Robust Electrical and Electromagnetic Safeguard: Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity. Port-based and IEEE 802.1Q VLAN: GARP (Generic Attribute Registration Protocol) and GVRP (Generic VLAN Registration Protocol) for segmentation of large networks into smaller parts and separate broadcast domains. Firmware Auto Backup: Auto backup of firmware to the secondary memory and activation of it from there in case of loss of the primary memory. Redundant Power System: Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm. Efficient Network Monitoring and Management: SNMP (Simple Network Management Protocol) and RMON (Remote Monitoring) protocols for efficient traffic management and monitoring. Efficient Traffic Prioritization: Effective QoS mechanisms for priority assignment, transmission of dedicated traffics to specific applications, and allocation of appropriate bandwidth to mission-critical communications. Redundant Ring for Fast Recovery: Xpress Ring for rapid detection and recovery of link failure in milliseconds and ERPS (Ethernet Ring protection Switching), Dual Homing, LACP (Link Aggregation Control Protocol), and RSTP (Rapid Spanning Tree Protocol) for continuous and consistent operation. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.3ad (Link Aggregation), IEEE 802.1AB (LLDP), IEEE 802.1ad (QinQ), IEEE 802.3az (Energy Efficient Ethernet), IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IEEE 802.1p (Class of Service), IEEE 802.1Q (VLAN Tagging), IEEE 802.1X (Port Authentication), IEEE 1588v2 (PTP) Interface: 8 x 10/100/1000BASE-T (RJ45), 4 x GbE SFP Slots, 1 x RJ45 Console Port, 1 x USB Port, DIP Switch for Primary/Redundant Power Voltage Drop Alarm setting, LED Panel: PWR, RPS, ALM, POST, SFP, 1000, LNK/ACT Power: Input Voltage: Primary inputs: 12~60VDC, Redundant inputs: 12~60VDC; Connection: Terminal Block; Power Consumption: System: 18W; Alarm Relay: One relay output, 1 A @ 24V DC Mechanical and Environment: Housing: Aluminum (IP40 Protection); Mounting: DIN-Rail; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 1,005 g (2.21 lb); Dimension (WxHxD): 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in) Ordering Information ModelDescriptionIEN-8648AManaged 8 x 10/100/1000 RJ45 & 4 x GbE SFP Industrial Switch Certifications and Features Icons USB -40°C-75°C DIN Rail ESD Protection IP Code 40 Redundant Power Surge Protection Modbus Topology Map ROHS CE FC Technical Specifications / Features 8 x 10/100/1000 RJ45 ports 4 x GbE SFP uplink ports 1 x Console Port (RJ45) 1 x USB Port DIN-Rail mounting IP40 Aluminum housing Operating temperature: -40°C~75°C (-40°F~167°F) Redundant power supply support Alarm relay output Power input: 12~60VDC System power consumption: 18W Weight: 1,005 g (2.21 lb) Dimensions: 57.3 x 175 x 126.4 mm (2.26 x 6.89 x 4.98 in) Compliance: ROHS, CE, FC
