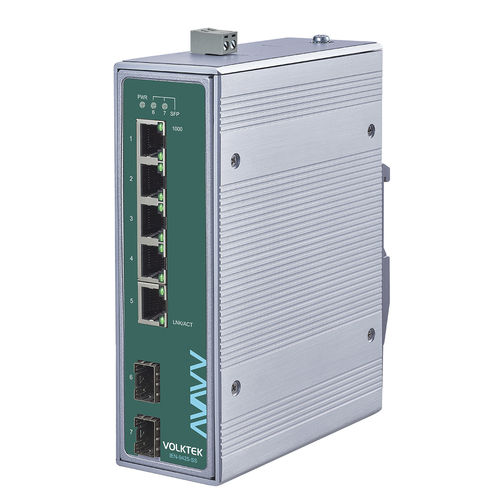

Unmanaged ethernet switch IEN-9425-SS

7 portsgigabit EthernetProfiNet

Product Highlights 5 x 10/100/1000 RJ45 ports and 2 x GbE SFP uplink ports for long-distance connectivity to control center and cascading Optimizes network performance with Flow Control and QoS for enough bandwidth prioritizes transmission for industrial applications using EIP (EtherNet/IP), PROFINET, and GOOSE packets Gives transmission priority to device and peripherals connected to Port #1 IEEE 1613 and IEC 61850-3 Certifications communication standard for safe and reliable substation operations Operating temperatures -40°C~75°C (-40°F~167°F) and IP30 Aluminum housing Overview IEN-9425-SS is a 5-port 10/100/1000 RJ45 downlink, and 2-port GbE SFP downlink unmanaged industrial-grade switch designed to meet the environmental requirements and conditions of substation applications. The downlink ports connect to industrial devices and controllers. The fiber ports allow noise-free Gigabit Ethernet transmission for fast recovery, reliable and long-distance to other switches or the control center.To keep a stable transmission of data the device uses rate limitation and QoS (Quality of Service) and prioritizes industrial applications using protocols like EIP, PROFINET, and GOOSE.This switch is built with industrial-grade components, enclosed in an IP30 aluminum case with high thermal conductivity to protect the device from tools and hazards. Certified for use in substation applications, the device implements standard and safe communication and withstands vibration, shock, free fall, and temperatures ranging from -40°C~75°C (-40°F~167°F). Features Robust Electrical and Electromagnetic Safeguard: Engineered to withstand EMI (electromagnetic interference), ESD (Electrostatic discharge), power surge, over voltage, over current, and reverse polarity. Redundant Power System: Powered simultaneously with two different power sources, e.g. SDR-480P-48 power supply and IRA-120/IRA-160 DIN-rail mountable AC to DC power adapter, with power failure alarm. Advanced QoS Support: QoS (Quality of Service) for efficient data transmission to mission-critical applications and Storm Control for limitation of traffic at a predefined rate. Eco-friendly Green Ethernet Technology: IEEE 802.3az Energy Efficient Ethernet (EEE) compliant with Green Ethernet technology capable of automatic adjustment of power consumption. Specifications Standards: IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-SX/LX), IEEE 802.3 (Nway Auto-negotiation), IEEE 802.3x (Flow Control), IEEE 802.1p (Class of Service) Interface: 5 x 10/100/1000BASE-T (RJ45), 2 x GbE SFP Slots, DIP Switch (Power voltage drop alarm setting PWR & RPS), LED Panel (PWR, SFP, 1000, LNK/ACT) Power: Input Voltage: 20V~60VDC; Connection: Terminal Block, Mini-DIN; Power Consumption: System: 13W; Alarm Relay: One relay output with current carrying capacity of 1 A @ 24V DC Mechanical and Environment: Housing: Aluminum (IP30 protection); Mounting Kit: DIN-Rail, Rack-mount; Operating Temperature: -40°C~75°C (-40°F~167°F); Storage Temperature: -40°C~85°C (-40°F~185°F); Operating Humidity: 5 to 95% RH (non-condensing); Storage Humidity: 5 to 95% RH (non-condensing); Weight: 869 g (1.9 lb); Dimension (WxHxD): 50 x 161.5 x 119.9 mm (1.97 x 6.36 x 4.72 in) Ordering Information ModelDescriptionIEN-9425-SSUnmanaged 5 x 10/100/1000 RJ45 & 2 x GbE SFP Industrial Switch, Substation Approval Technical Specifications 5 x 10/100/1000 RJ45 ports 2 x GbE SFP uplink ports Flow Control and QoS support IEEE 1613 and IEC 61850-3 certified Operating temperature: -40°C~75°C IP30 Aluminum housing Input Voltage: 20V~60VDC Power Consumption: 13W Weight: 869 g Dimensions: 50 x 161.5 x 119.9 mm
