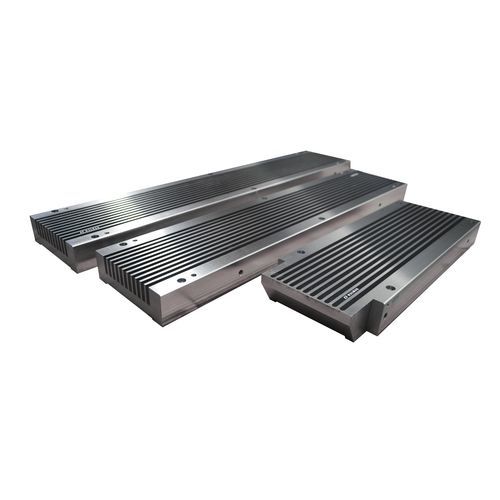

Permanent magnetic block LB series

Permanent magnetic blocks are supplied in dimensions and with clamping force according to customer requirements. These blocks are used underneath the conveyor belts of deburring machines, where they ensure reliable and secure holding of the material during the deburring process. Advantages: Possibility of machining to the required shape to adapt to various components Possibility of transverse and longitudinal poles By using them, it is possible to reduce magnetic field of the chuck for clamping of too small or thin workpieces They can be used also as a lateral support when grinding workpieces with a low total contact area with a chuck ( e.g. hollow thin-walled sections) Detailed description: These laminated blocks are made of a magnetically highly conductive material. They are composed of a combination of steel and brass laminations. For grinding, they are placed on the top pole plate of the magnetic chuck and after its activation, magnetic flux can enter freely into the workpiece. The blocks have a very stable construction, whereas individual laminations are not joined with bolts or screws. This allows modification of these laminated blocks according to individual customer requirements. Important parameters: Application: Accessories Technology: Conventional Block size: from 75 x 75 mm Pole pitch: T4 3 + 1 mm Poles: Transverse/longitudinal Use: Reduction of the pole plate pitch of the chuck Expansion of application possibilities of the chuck by clamping irregularly shaped material Package content: Laminated block
