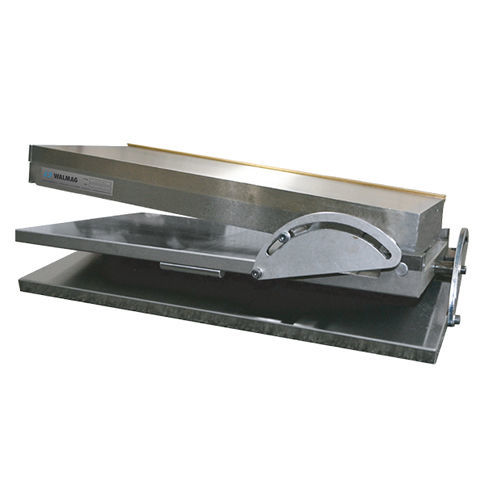

Machining sine Table SINEC series

Product overview:

The Fixar compound sine table with a Neomicro permanent magnetic chuck is designed for precise angle grinding, electrical discharge machining (EDM) and measuring. It enables simultaneous tilting of the workpiece around longitudinal and transverse axes, providing high variability during machining.

Advantages:

• Tilting possible on both longitudinal and transverse axes
• Angle settings: longitudinal 0–45°, transverse 0–30° (set by end gauges on the sine principle)
• Unique bearing design and solid hardened base plate
• Equipped with Neomicro permanent magnetic chuck (fine pole layout); optional chucks: Neomill or Electrofine
• High positional accuracy: ±5 seconds of arc (stable over long use)

Scope of supply:

• Sine table Fixar SINEC
• Allen keys
• Quick-angle setting table
• Operating instructions

Applications:

• Accurate angular surface grinding
• Electrical discharge machining (EDM)
• Metrology and inspection

Models / Dimensions:

• SINEC100175 — W: 100 mm; L: 175 mm; H: 104 mm; C x D: 210 x 140 mm; S: 165/110 mm; Weight: 15 kg
• SINEC130255 — W: 130 mm; L: 255 mm; H: 120 mm; C x D: 290 x 170 mm; S: 245/140 mm; Weight: 32 kg
• SINEC150300 — W: 150 mm; L: 300 mm; H: 123 mm; C x D: 335 x 190 mm; S: 340/160 mm; Weight: 49.5 kg
• SINEC200400 — W: 200 mm; L: 400 mm; H: 124 mm; C x D: 435 x 240 mm; S: 390/210 mm; Weight: 73 kg

Technical specifications:

• Application: Grinding, measuring, EDM
• Technology: Permanent magnetic technology
• Holding force (Neomicro chuck): 100 N/cm²
• Angle setting ranges: longitudinal 0–45°; transverse 0–30° (set by end gauges based on the sine principle)
• Accuracy: ±5 seconds of arc
• Parallelism: ±5 µm per 100 mm
• Minimum workpiece size: 4 × 4 × 1 mm
• Pole orientation: transverse
• Regrinding limit: 7 mm
• Pole pitch: T1.9 1.4+0.5 mm (steel/brass)
• Warranty: 2 years
