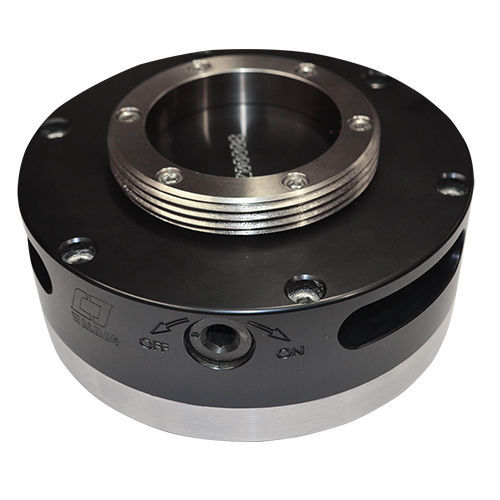

Switch magnetic base MAGB150

A permanent magnetic base designed to facilitate mounting of 3D measuring devices (measuring arms, laser scanners, etc.) onto steel work tables or machine beds. The Magbase 3D is lightweight, easy to switch and enables quick repositioning and direct placement of a measuring instrument onto the measured part.

Advantages:

• Easy activation using the switching key
• High holding force (up to 140 N/cm²)
• Compact design and low dead weight (4.95 kg)
• Compatible with the Brunson connecting adapter
• Enables quick repositioning and direct placement onto the measured part

Use:

• Accessory for portable measuring arms intended for high-precision tactile measurement
• Magnetic holder for laser scanners and other portable 3D measuring devices

Package content:

• Magnetic chuck (Magbase 3D)
• Switching key
• Certificate
• Instructions for use

Technical specifications:

• Model: MZPM150
• Chuck diameter (D): 150 mm
• Height (H): 73 mm
• Weight: 4.95 kg
• Holding force: up to 140 N/cm²
• Poles: Radial
• Mounting ring: 89 mm x 8 UNC - 2A
• Guarantee: 2 years
• Compatible with measuring devices from manufacturers such as FARO and Hexagon
