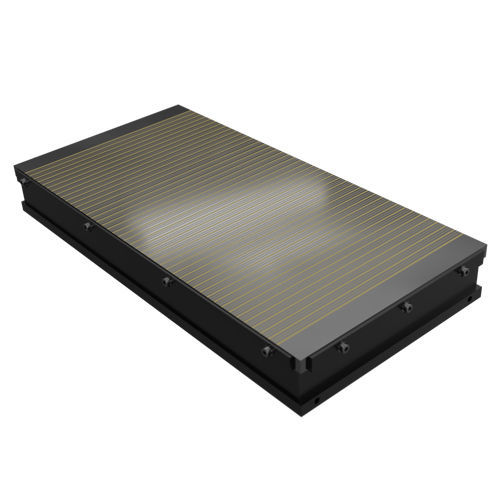

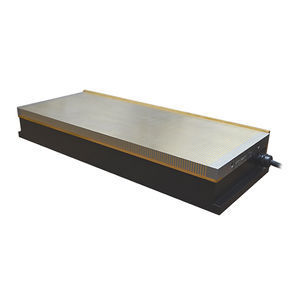

Rectangular électromagnetic chuck BJP series

for grindingfor heavy loadswith parallel pole pitch

Overview

The BJP electromagnetic chuck is a heavy-duty chuck designed for surface grinding of a wide range of parts and sizes. Operation is via a control unit that enables activation and stepless regulation of magnetic holding force to establish optimum clamping conditions.

Advantages

• Solid, waterproof construction with a multi-coil system
• Control unit for quick activation/demagnetization and variable holding-force regulation
• Durable top plate with combined transverse poles for flexible clamping
• Fine pole pitch: 4 mm (steel) and 1 mm (brass); main pole pitch approx. 42 mm
• Simple operation and low-maintenance design
• Standard supply voltage: 110 V DC

Description

Coils are arranged to maximise magnetic utilisation and provide a high, uniform holding force with minimal thermal rise in the work area. The control unit allows activation by button or disconnect switch and provides smooth adjustment of holding force. Integration with a suitable control unit and the machine control enables partially or fully automatic operation. Automatic demagnetization is available to prevent residual magnetism in the workpiece after unclamping.

Parameters (selected models)

• BJP200600 — W: 200 mm; L: 600 mm; H: 98 mm; Power: 160 W; Weight: 77 kg
• BJP300600 — W: 300 mm; L: 600 mm; H: 98 mm; Power: 215 W; Weight: 118 kg
• BJP400800 — W: 400 mm; L: 800 mm; H: 100 mm; Power: 350 W; Weight: 212 kg
• BJP3001000 — W: 300 mm; L: 1000 mm; H: 103 mm; Power: 350 W; Weight: 201 kg
• BJP4001000 — W: 400 mm; L: 1000 mm; H: 103 mm; Power: 435 W; Weight: 269 kg
• BJP5001000 — W: 500 mm; L: 1000 mm; H: 108 mm; Power: 530 W; Weight: 352 kg
• BJP6001000 — W: 600 mm; L: 1000 mm; H: 113 mm; Power: 620 W; Weight: 420 kg

Scope of supply

• Magnetic chuck
• Rear and side stop blocks
• Power supply cable
• Certificate
• Instructions for use

Technical specifications

• Application: Heavy-duty surface grinding
• Technology: Electromagnet (electro)
• Holding force: 130 N/cm²
• Minimum workpiece size: 35 x 35 x 3 mm
• Poles: Transverse
• Regrinding limit: 7 mm
• Pole pitch: major approx. 42 mm; fine pitch 4 mm (steel) + 1 mm (brass)
• Standard input voltage: 110 V DC
• Control: remote control / control unit — variable holding-force regulation and automatic demagnetization; possible partial or full integration with machine control
• Warranty: 2 years
