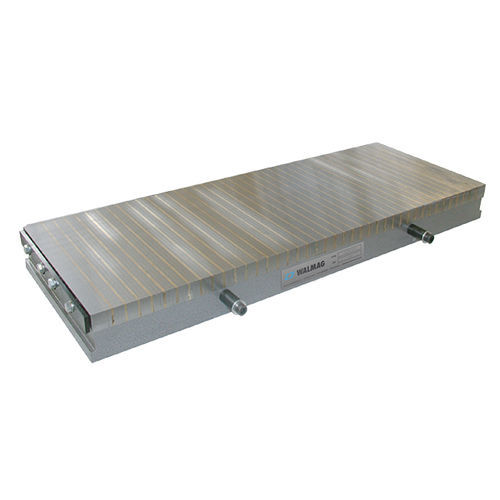

Rectangular électromagnetic chuck UNIG series

for grinding

The Unigrip is a universal electromagnetic chuck designed for standard surface grinding of medium to large workpieces, offering a favourable price-performance ratio and fast workpiece replacement for efficient production.

Advantages:

• Excellent price-performance ratio
• High speed of workpiece replacement for efficient production
• Durable top plate with combined transverse poles allowing versatile utilization when grinding large as well as smaller parts; watertight design with firmly embedded coils
• Standard input voltage 110 V

Important parameters:

• Application: Grinding
• Technology: Electromagnet
• Holding force: 90 N/cm2
• Minimum workpiece size: 25 x 25 x 5 mm
• Poles: Transverse (combined transverse pole pitch)
• Regrinding limit: 6 mm
• Pole pitch: 19 mm (further refined 5 + 0.5 / 5 + 0.5 / 5 + 3 steel/brass)
• Guarantee: 2 years

Scope of supply:

• Magnetic chuck
• Side and rear stop blocks
• Set of clamps
• 3 m power supply cable
• Certificate
• Instructions for use

Use:

• Clamping of medium to large workpieces during general surface grinding

Technical specifications:

• Designed for 110 V (DC) and compatible with a control unit offering regulation of holding force and automatic demagnetization
• Models and key dimensions / electrical / mass data:
  • UNIG300600 — W: 300 mm, L: 600 mm, H: 73 mm, Power: 198 W, Weight: 96 kg
  • UNIG400800 — W: 400 mm, L: 800 mm, H: 73 mm, Power: 253 W, Weight: 162 kg
  • UNIG3001000 — W: 300 mm, L: 1000 mm, H: 73 mm, Power: 235 W, Weight: 172 kg
  • UNIG4001000 — W: 400 mm, L: 1000 mm, H: 73 mm, Power: 384 W, Weight: 210 kg
  • UNIG5001000 — W: 500 mm, L: 1000 mm, H: 73 mm, Power: 443 W, Weight: 251 kg
  • UNIG6001000 — W: 600 mm, L: 1000 mm, H: 73 mm, Power: 568 W, Weight: 358 kg
