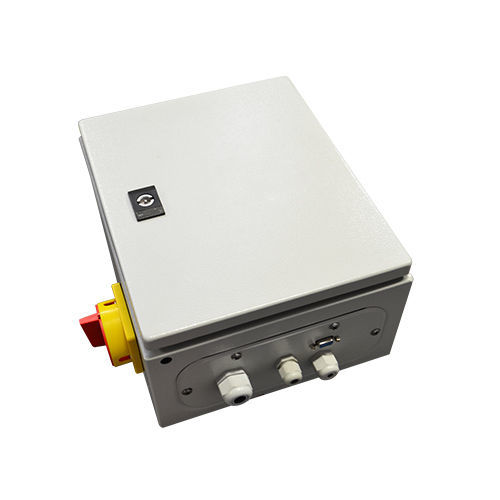

Remote control electronic control unit EM-CU

Overview
EM-CU control units are power and control units designed for WALMAG electromagnetic chucks. They supply 110 VDC to the chucks and integrate operator protection and advanced control functions to support efficient production. Multiple input supply and output power variants are available to suit different machine configurations.

Key features

• Intended use: power and control of 110 VDC WALMAG electromagnetic chucks.
• Input supply versions: 110 V (for chucks); 200–230 V 50/60 Hz; 380–460 V 50/60 Hz.
• Standard enclosure: steel housing with IP54 protection; IP00 version for direct cabinet installation available on request.
• Safe magnetization level control function (magnetization level monitoring).
• Available power ratings: 150 W, 630 W, 1250 W, 2500 W.
• Networking and PLC support for connecting multiple units and fixtures into large assemblies.
• Supports control via U19 wired remote control.
• Fully adjustable clamping force and capability to control multiple magnetic chucks/switches simultaneously.

Available models (excerpt)

• EMCU125IP00 — Power: 1250 W — Height [mm]: 0 — Availability: on request — Price without VAT: On request
• EMCU125IP54 — Power: 1250 W — Height [mm]: 150.00 — Availability: on request — Price without VAT: On request
• EMCU150IP00 — Power: 150 W — Height [mm]: 0 — Availability: on request — Price without VAT: On request
• EMCU150IP54 — Power: 150 W — Height [mm]: 120.00 — Availability: on request — Price without VAT: On request
• EMCU2500IP00 — Power: 2500 W — Height [mm]: 0 — Availability: on request — Price without VAT: On request
• EMCU2500IP54 — Power: 2500 W — Height [mm]: 0 — Availability: on request — Price without VAT: On request
• EMCU630IP00 — Power: 630 W — Height [mm]: 0 — Availability: on request — Price without VAT: On request
• EMCU630IP54 — Power: 630 W — Height [mm]: 150.00 — Availability: on request — Price without VAT: On request

Technical specifications

• Series / model: EM-CU
• Function: power and control unit for 110 VDC electromagnetic chucks
• Input supply options: 110 V; 200–230 V 50/60 Hz; 380–460 V 50/60 Hz
• Protection: standard steel enclosure IP54; IP00 version for cabinet installation available on request
• Magnetization control: safe magnetization level monitoring function included
• Available output power ratings: 150 W, 630 W, 1250 W, 2500 W
• Remote control: supports U19 wired remote control
• Networking: PLC / machine networking support, allows connecting multiple units and fixtures
• Clamping: fully adjustable clamping force; can control multiple chucks/switches simultaneously
