Radial électromagnetic chuck EM series

for grindingfor turningfor cylindrical parts

Description

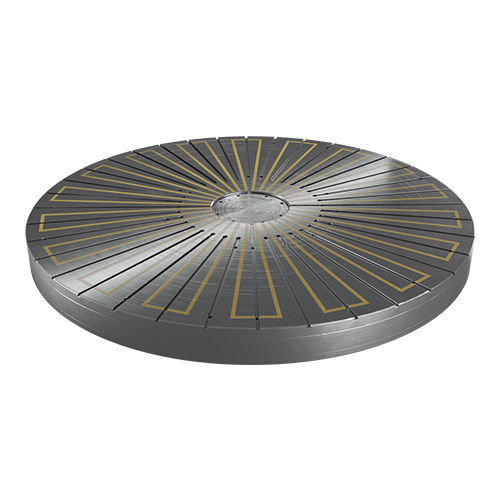

The Circu EM is an electromagnetic chuck with a radial pole layout designed for installation on rotary tables of grinders and lathes to clamp circular or cylindrical workpieces (bearing rings, bushings, saw blades) with high stability. The chuck offers a high holding force with continuous regulation, enabling precise centering and safe clamping of thin workpieces.

Advantages

• Continuous regulation of clamping force for easy centering and reliable clamping of thin parts
• Optionally available with a T‑slot pole plate for mounting pole extensions or enabling through‑machining
• Fast and effective demagnetization via dedicated control unit
• Simple, repeatable control of the clamping cycle through the control unit

Applications

• External, internal and face machining of round and ring-shaped workpieces on vertical grinders
• Turning operations on lathes

Models / Dimensions (per model):

• Circu EM 400 — D: 400 mm; H: 90 mm; Weight: 76 kg
• Circu EM 500 — D: 500 mm; H: 90 mm; Weight: 120 kg
• Circu EM 600 — D: 600 mm; H: 100 mm; Weight: 195 kg
• Circu EM 700 — D: 700 mm; H: 100 mm; Weight: 265 kg
• Circu EM 800 — D: 800 mm; H: 100 mm; Weight: 365 kg
• Circu EM 1000 — D: 1000 mm; H: 100 mm; Weight: 550 kg
• Circu EM 1250 — D: 1250 mm; H: 123 mm; Weight: 990 kg
• Circu EM 1500 — D: 1500 mm; H: 120 mm; Weight: 1550 kg

Characteristics / Technical specifications:

• Technology: Electromagnet
• Holding force: 120 N/cm²
• Poles: radial
• Regrinding limit: 8 mm
• Warranty: 2 years
• Supply / nominal voltage: 110 V (power for the chuck is provided by a suitable control unit)

Connection and control

• Pole plate can be supplied with T‑slots on request to fit pole extensions or allow through‑drilling/machining access
• Control and demagnetization are performed via a dedicated control unit
• Electrical connection options: via slip ring in the machine spindle or via connector located directly on the chuck
