Permanent magnet magnetic chuck Neogrip

neodymium permanent magnetcircularfor machine tools

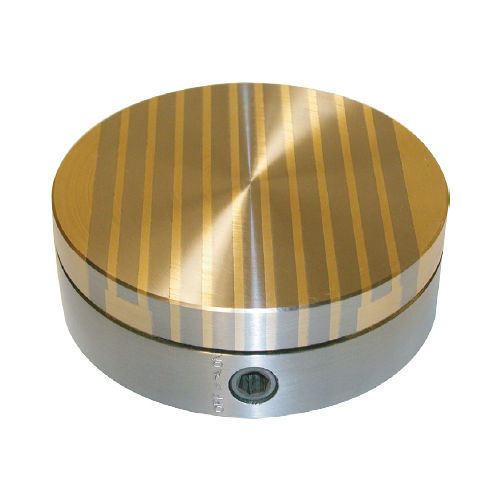

The WALMAG NEOG permanent magnetic chuck is a workholding device engineered for final circular grinding. It is optimized to clamp thin and very small components with repeatable precision. The unit integrates a solid steel base, a compact control mechanism and a double magnetic system using neodymium magnets to ensure stable holding under finishing operations.

Advantages

• Precise and fast clamping of thin and very small workpieces
• Low structural height and reduced external magnetic field
• Double magnetic system with neodymium magnets for reliable holding
• Steel base enabling attachment to a flange or installation directly into a chuck
• Waterproof design suitable for dry operation and use with coolant emulsion
• Silver-brazed top (pole) plate for improved durability

Scope of supply

• Magnetic chuck
• Allen key
• Instructions for use

Use

• Finishing operations during circular grinding
• Circular grinding in dry conditions and with cooling emulsion
• Auxiliary workholding device for various mechanical workstations

Characteristics / Technical specifications

• Brand: WALMAG
• Application: Circular grinding
• Technology: Permanent magnet
• Holding force: 80 N/cm²
• Minimum workpiece dimension (reported): 35 x 5 mm
• Poles: Transverse
• Regrinding limit (pole wear): 7 mm
• Pole pitch: T11 8 + 3 mm (steel / brass)
• Guarantee: 2 years
• Waterproof design for use with coolant
• Double magnetic system with neodymium magnets
• Steel base with option to mount to a flange or into a chuck
• Silver-brazed top plate
• Models and physical parameters:
  • NEOG100 — Diameter D: 100 mm; Height H: 51 mm; E: 86 mm; Weight: 3 kg; Availability: 5 - 7 weeks; Price: On request
  • NEOG130 — Diameter D: 130 mm; Height H: 51 mm; E: 120 mm; Weight: 5 kg; Availability: 5 - 7 weeks; Price: On request
  • NEOG150 — Diameter D: 150 mm; Height H: 51 mm; E: 137 mm; Weight: 7 kg; Availability: 5 - 7 weeks; Price: On request
  • NEOG200 — Diameter D: 200 mm; Height H: 51 mm; E: 182 mm; Weight: 12 kg; Availability: 5 - 7 weeks; Price: On request
