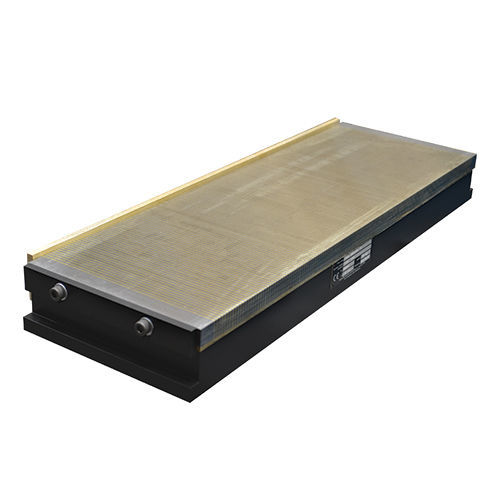

Electro-permanent magnetic chuck Grindmaster

permanent magnetrectangularfor grinding

The Grindmaster electro-permanent magnetic chuck is designed for surface and precision grinding of a very wide range of workpieces, from very small and thin parts to larger pieces. Electro-permanent technology provides high clamping accuracy, safety (workpieces remain held by permanent magnets in case of power failure) and low operating costs.

Advantages:

• High clamping accuracy (cold magnetic system with permanent magnets)
• Minimal operating costs — only a short electrical pulse to switch on/off
• High operational safety: workpiece remains fixed by permanent magnets in case of power failure
• High and uniform holding force across the active surface
• The chuck and the workpiece can be fully demagnetized
• Several pole pitch variants available to suit different workpieces
• Alternating North/South pole layout
• STD input voltage 340 VDC (other voltages available on request)

Detailed description:
The Grindmaster series offers high accuracy and economical operation for grinding applications. A short electrical pulse activates the chuck; electro-permanent technology prevents gradual heating after switch-on, ensuring stable performance and low operating costs. The chuck delivers up to 120 N/cm² holding force evenly distributed over its surface and is available in several pole pitch variants.

Important parameters:

• Application: Grinding
• Technology: Electro-permanent
• Pole pitch: T5 (4+1 mm) or T18 (15+3 mm)
• Holding force: up to 120 N/cm² (evenly distributed)
• Pole orientation: Transverse
• STD input voltage: 340 VDC (other voltages on request)
• Warranty: 2 years

Use:

• Clamping of small and larger workpieces during grinding

Scope of supply:

• Magnetic chuck
• Power supply cable
• Certificate
• Instructions for use

Characteristics / technical specifications:

• Series: Grindmaster
• Holding force: up to 120 N/cm²
• Standard input voltage: 340 VDC
• Pole pitch variants: T5 (4+1 mm), T18 (15+3 mm)
• Pole orientation: Transverse
• Available models and nominal dimensions (W x L mm):
  • GM200400 — 200 x 400
  • GM200600 — 200 x 600
  • GM300600 — 300 x 600
  • GM400600 — 400 x 600
  • GM400800 — 400 x 800
  • GM500950 — 500 x 950
  • GM6001000 — 600 x 1000
  • GM6001200 — 600 x 1200
  • GM6001500 — 600 x 1500
  • GM7001410 — 700 x 1410
• Typical model heights shown in listing: 68 mm or 90 mm depending on model
• Availability: on request (per model)
