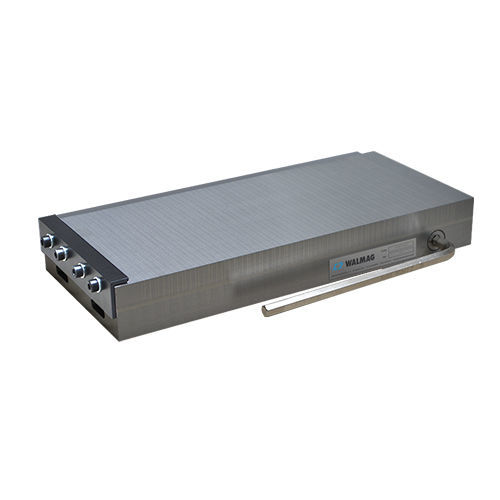

Neodymax is a permanent magnetic chuck featuring a double neodymium magnetic system that provides very high holding force, designed for demanding machining operations such as heavy surface grinding and for light milling.

Advantages

• High holding force thanks to a double neodymium magnetic system
• Versatility: suitable for grinding and light milling
• Durable top plate made of steel/stainless steel with long service life
• Regrinding limit of 6 mm
• Robust and durable steel base
• Tough and stable structure for precise machining
• Easy operation for efficient clamping

Detailed description / key features

• Ranks among the strongest permanent magnetic chucks in the range with holding force up to 120 N/cm² while keeping a relatively low chuck weight
• Top plate with transverse combined poles; pole pitch: 15 mm, further refined pattern 5/1/5/1/2/1 (steel / stainless steel)
• Suitable for clamping small and thin parts as well as much larger components for precise surface grinding
• Waterproof design allowing immersion in dielectric liquid during EDM machining

Important parameters (extracted)

• Application: Milling, grinding, EDM
• Technology: Permanent magnet (neodymium)
• Holding force: 120 N/cm²
• Minimum recommended workpiece size: 10 x 10 x 5 mm
• Poles: Transverse
• Regrinding limit: 6 mm
• Pole pitch: 15 mm (refined 5/1/5/1/2/1 for steel/stainless steel)
• Guarantee: 2 years

Scope of supply

• Magnetic chuck
• Rear and side stop blocks
• Allen key
• Instructions for use

Use

• Precise grinding of small and thin pieces up to large components
• Light surface milling

Models / Parameters

• NEOD150300 — W 150 mm × L 300 mm, H 54 mm, Weight 20 kg
• NEOD150450 — W 150 mm × L 450 mm, H 54 mm, Weight 30 kg
• NEOD200450 — W 200 mm × L 450 mm, H 54 mm, Weight 40 kg
• NEOD250380 — W 250 mm × L 380 mm, H 56 mm, Weight 40 kg
• NEOD300600 — W 300 mm × L 600 mm, H 56 mm, Weight 78 kg

Characteristics / technical specifications

• Technology: Permanent (double neodymium magnetic system)
• Holding force: 120 N/cm²
• Pole arrangement: Transverse combined poles
• Pole pitch: 15 mm (refined 5/1/5/1/2/1 for steel/stainless steel)
• Regrinding limit: 6 mm
• Minimum workpiece: 10 × 10 × 5 mm
• Top plate material: steel / stainless steel (durable)
• Base: robust steel base
• Waterproof design: suitable for immersion in dielectric liquid during EDM
• Intended operations: Grinding, light milling, EDM
• Warranty: 2 years
