Rectangular électromagnetic chuck ELMGW series
for machine toolsfor grindingwith parallel pole pitch

Rectangular électromagnetic chuck - ELMGW series - WALMAG MAGNETICS - for machine tools / for grinding / with parallel pole pitch
Rectangular électromagnetic chuck - ELMGW series - WALMAG MAGNETICS - for machine tools / for grinding / with parallel pole pitch
Rectangular électromagnetic chuck - ELMGW series - WALMAG MAGNETICS - for machine tools / for grinding / with parallel pole pitch - image - 2
Rectangular électromagnetic chuck - ELMGW series - WALMAG MAGNETICS - for machine tools / for grinding / with parallel pole pitch - image - 3
Add to favorites
Compare this product
Go to the WALMAG MAGNETICS website for more information

Characteristics

Type
rectangular
Applications
for machine tools, for grinding
Other characteristics
with parallel pole pitch

Description

Overview

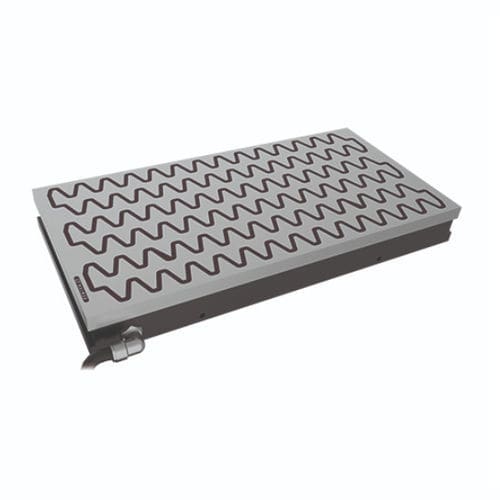

  • Elmag Wave is an electromagnetic chuck designed for heavy-duty, high-performance surface grinding, particularly suited to roughing operations on vertical grinders with grinding segments. Its wave-type pole configuration provides an even distribution of clamping force across the active surface. The unit features a one-piece steel body, epoxy-moulded coils and high-quality galvanized foils between body and top plate. Standard supply: 110 V (DC), 3 m power cable.


Advantages
  • High-performance clamping electromagnet
  • Multiple protections against leakage: one-piece steel body, coils fully moulded in epoxy resin, galvanized foils between body and top plate
  • Wave-shaped poles ensure uniform holding force over the entire active surface


Use / Applications
  • Heavy-duty and high-performance surface grinding
  • Roughing operations, primarily on vertical grinders with grinding segments


Scope of supply
  • Magnetic chuck
  • Set of clamps
  • Power supply cable (standard length 3 m)
  • Instructions for use
  • Certificate


Technical specifications
  • Application: Grinding
  • Technology: Electromagnet
  • Holding force: 130 N/cm²
  • Minimum workpiece size: 120 × 40 × 20 mm
  • Poles: Wave type
  • Pole pitch: T40
  • Regrinding limit: 8 mm
  • Guarantee: 2 years
  • Standard input voltage: 110 V (DC)
  • Standard power supply cable length: 3 m
  • Models and main dimensions / weight:
    • ELMGW200600 — W 200 mm × L 600 mm × H 70 mm — Weight 59 kg
    • ELMGW2001000 — W 200 mm × L 1000 mm × H 80 mm — Weight 113 kg
    • ELMGW2501000 — W 250 mm × L 1000 mm × H 79 mm — Weight 135 kg
    • ELMGW300500 — W 300 mm × L 500 mm × H 70 mm — Weight 74 kg
    • ELMGW300600 — W 300 mm × L 600 mm × H 70 mm — Weight 89 kg
    • ELMGW300800 — W 300 mm × L 800 mm × H 70 mm — Weight 119 kg
    • ELMGW3001000 — W 300 mm × L 1000 mm × H 80 mm — Weight 170 kg
    • ELMGW3001500 — W 300 mm × L 1500 mm × H 80 mm — Weight 254 kg
    • ELMGW400600 — W 400 mm × L 600 mm × H 70 mm — Weight 119 kg
    • ELMGW400700 — W 400 mm × L 700 mm × H 70 mm — Weight 138 kg
    • ELMGW400800 — W 400 mm × L 900 mm × H 70 mm — Weight 158 kg
    • ELMGW6001000 — W 600 mm × L 1000 mm × H 80 mm — Weight 347 kg
    • ELMGW6001500 — W 600 mm × L 1500 mm × H 80 mm — Weight 533 kg
    • ELMGW6001500 — W 600 mm × L 1500 mm × H 80 mm — Weight 689 kg
