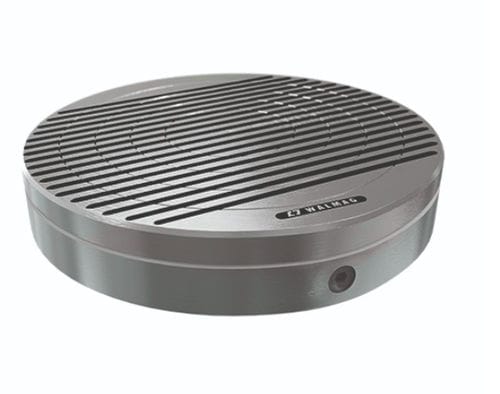

Permanent magnet magnetic chuck MAXGRIP

circularroundfor turning

The permanent circular magnetic chuck MAXGRIP is a high‑holding‑force chuck designed for turning and circular grinding operations. It features a solid one‑piece top plate with a fine parallel pole arrangement and allows continuous control of the clamping force for easy centering of workpieces.

Advantages:

• Solid steel body
• Top plate with parallel pole configuration
• Continuous adjustment of the holding force
• Waterproof design (solid top plate prevents coolant leakage)
• Double magnetic system

Important parameters:

• Application: Turning, circular grinding
• Technology: Permanent magnet
• Available dimensions: From 200 mm
• Holding force: Up to 160 N/cm²
• Poles: Parallel (transverse)
• Minimum workpiece: 40 x 8 mm
• Regrinding limit: 10 mm
• Pole pitch: T15 11 + 4 mm (steel/epoxy)
• Guarantee: 2 years

Use:

• Clamping of workpieces during turning and circular grinding

Scope of supply:

• Magnetic chuck
• Wrench key
• Operating instructions

Available models / key dimensions (model — D (mm); H (mm); G (mm); D1 (mm); Weight (kg)):

• MAXGRIP200 — D: 200 mm; H: 57 mm; G: 5 mm; D1: 60 mm; Weight: 15 kg
• MAXGRIP250 — D: 250 mm; H: 57 mm; G: 5 mm; D1: 80 mm; Weight: 22 kg
• MAXGRIP300 — D: 300 mm; H: 57 mm; G: 6 mm; D1: 150 mm; Weight: 32 kg
• MAXGRIP350 — D: 350 mm; H: 57 mm; G: 6 mm; D1: 170 mm; Weight: 43 kg
• MAXGRIP400 — D: 400 mm; H: 57 mm; G: 8 mm; D1: 200 mm; Weight: 56 kg

Characteristics / technical specifications:

• Series: MAXGRIP
• Technology: Permanent magnet
• Holding force (max): up to 160 N/cm²
• Pole arrangement: parallel (transverse), pole pitch T15 (11 + 4 mm steel/epoxy)
• Top plate: solid one‑piece top plate (waterproof, high regrinding limit)
• Minimum clamped workpiece: 40 x 8 mm
• Regrinding limit: 10 mm
• Available diameters: from 200 mm (models listed above)
• Guarantee: 2 years
