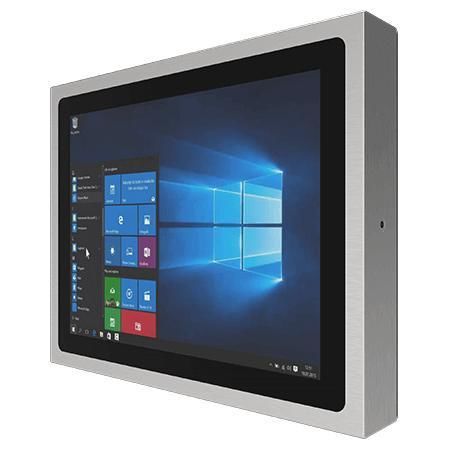

PCAP touchscreen panel PC R15IE3S-SPC3

multitouch screentouch screen15"

Overview
Winmate 15" IP65 stainless PCAP chassis Panel PC R15IE3S-SPC3. The unit features a full IP65 waterproof enclosure, SUS 316 / AISI 316 stainless steel construction, a true flat edge-to-edge front surface for easy cleaning, projected capacitive (P-Cap) multi-touch support, glove/rain touch modes, and optional optical bonding. It is designed for hygienic and harsh environments such as Food & Beverage, Pharmaceutical and chemical industries.

Key Features

• Intel Atom® x6413E Elkhart Lake processor
• SUS 316 / AISI 316 stainless steel suitable for food and chemical industries
• Sealed to IP65 for protection against water and dust
• True flat, easy-to-clean front surface with edge-to-edge design
• Projected capacitive (P-Cap) multi-touch with superior readability
• Various mounting solutions: VESA mount (default) and Yoke mount (optional)
• Plenty of I/O including USB 2.0, RS232 serial port and RJ45 10/100/1000 LAN
• Waterproof ports with adapter cables for external connectivity
• Support for Glove / Rain touch modes
• Optional optical bonding

Certifications

• IP65
• FCC
• CE

Designed Use & Applications
Hygienic and industrial applications including Food & Beverage production lines, pharmaceutical manufacturing, chemical factories, and other automated processes where washdown, corrosion resistance and easy cleaning are required.

Product Highlights

• Waterproof All-Around: Complies with IP65 for regular cleanup processes and strict hygiene standards.
• Comprehensive Stainless Solution: Wide range of stainless HMI and Panel PCs for automation in hygienic industries.
• Projected Capacitive Multi-Touch (P-CAP): High-sensitivity multi-touch supporting gestures (rotate, drag, pinch-zoom).
• Chassis Design: Covered chassis design with support for multiple mounting brackets for easy installation.

Technical specifications

• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (Default); 8 GB (Optional); 16 GB (Optional)
• Storage: 128 GB SSD (Default); 256 GB SSD (Optional); 512 GB SSD (Optional); 1 TB (Optional); 2 TB (Optional)
• Ethernet Controller: 1 x Intel® Ethernet Controller
• Operating System (options): Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Windows 10 IoT Enterprise (64-bit) (Optional); Linux Ubuntu 22.04 (Optional)
• WLAN: Support (Optional)
• Bluetooth: Support (Optional)
• Dimensions: 378 x 301 x 56.4 mm
• Weight: 7.5 kg
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling System: Fanless design
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65
• Certification: CE, FCC
• USB Port: 1 x M12 waterproof connector for 2 x USB 2.0
• Serial Port: 1 x M12 waterproof connector for RS232
• LAN: 1 x Waterproof Giga LAN RJ45 connector
• Indicator: 1 x LED indicator for power; 1 x LED indicator for storage
• Buttons: 1 x Power button; 1 x Reset button
• Accessories included / available: 100~240V AC to DC adapter with waterproof connector; power cord; external USB cable with waterproof connector; external COM cable with waterproof connector; external LAN cable with waterproof connector; waterproof caps; manual; VESA screws
• Power Rating: 12 V DC (M12 type)
