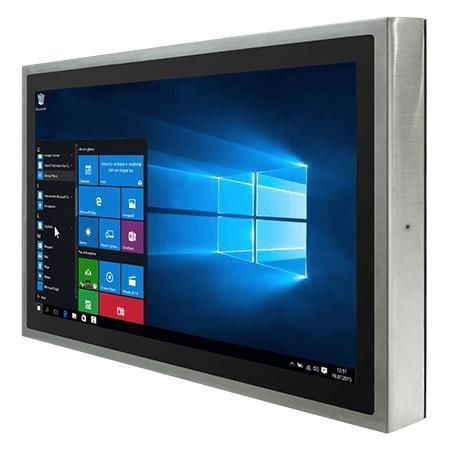

PCAP touchscreen panel PC W22IAD3S-SPA3

multitouch screentouch screen21.5"

Overview
The W22IAD3S-SPA3 is a 21.5-inch Intel® Core™ i5-1235U IP65 stainless PCAP chassis panel PC designed for hygienic and industrial environments. It features a full IP65 waterproof enclosure, SUS 316 / AISI 316 stainless steel housing, a true flat edge-to-edge front surface for easy cleaning, and projected capacitive (P-CAP) multi-touch support with Glove / Rain mode and optional optical bonding.

Key features

• 12th Generation Intel® Core™ i5-1235U (3.3 GHz, up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel suitable for food and chemical industries
• Sealed to IP65 for protection against water and dust
• True flat, easy-to-clean front surface with edge-to-edge design
• Projected Capacitive multi-touch with superior readability
• Various mounting solutions: VESA mount (default) and Yoke mount (optional)
• Plenty of I/Os including USB 2.0 (M12 connector), RS232 (M12), and RJ45 Giga LAN waterproof connector
• Waterproof ports with adapter cables for external connectivity
• Support for Glove / Rain mode
• Optional optical bonding

Waterproof All-Around
The panel PC complies with IP65 water and dust resistance for regular cleanup processes and strict hygiene standards in Food, Beverage, and Pharmaceutical industries.

Comprehensive Stainless Solution
Designed for automation in food & beverage and chemical applications, offering a wide range of stainless HMI and panel PC configurations.

Projected Capacitive Multi-Touch (P-CAP)
Highly sensitive multi-touch screen supporting typical multi-finger gestures such as rotate, drag-and-drop and pinch-to-zoom. Supports Glove and Rain modes for industrial use.

Chassis Design
Covered chassis design with support for different mounting brackets (VESA default, optional Yoke) for flexible installation and maintenance.

Technical specifications

• Display: Size: 21.5 inches; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution: 1920 x 1080; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; View Angles: 89,89,89,89; Active Area: 476.64 x 268.11 mm
• System: Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz); Memory: 8 GB (Default), optional 16 GB or 32 GB; Storage: 128 GB SSD (Default), optional 256 GB / 512 GB / 1 TB / 2 TB / 4 TB; 1 x SATA III for 2.5" SSD/HDD up to 2 TB (Optional); Ethernet controller: 2 x Intel® Ethernet Controller; Security: TPM 2.0; OS: Windows 11 IoT Enterprise (64-bit) (Optional), Windows 11 Pro 64-bit (Optional), Linux Ubuntu 22.04 (Optional, does not support Wake on Touch); WLAN and Bluetooth support (optional)
• Mechanical: Dimension: 541 x 337 x 56.2 mm; Mounting: VESA mount (Default), Yoke mount (Optional); Enclosure: Stainless Housing (SUS 316 / AISI 316); Cooling: Fanless Design
• Environment: Operating Humidity: 10% to 90% RH, Non-Condensing; Operating Temperature: 0°C to 45°C; Storage Temperature: -20°C to 60°C; IP rating: IP65
• Certification: CE, FCC
• I/O Ports: USB: 1 x M12 waterproof connector for 2 x USB2.0; Serial: 1 x M12 waterproof connector for RS232; LAN: 1 x Waterproof Giga LAN RJ45 Connector; Indicators: 1 x LED power, 1 x LED storage
• Controls: 1 x Power Button, 1 x Reset Button
• Accessories: 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB/COM/LAN cables with waterproof connectors; Waterproof caps; Manual; VESA screws
• Power: 12V DC (M12 type)
