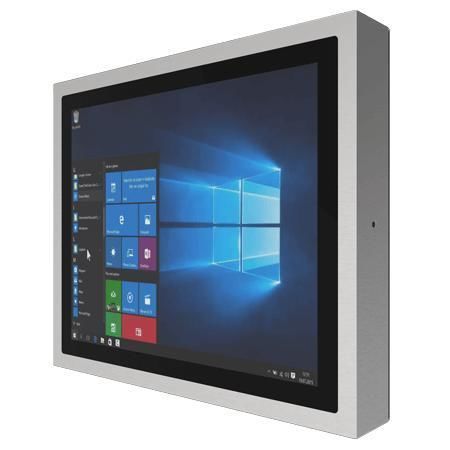

PCAP touchscreen panel PC R17IE3S-SPM1

multitouch screentouch screen17"

Key features

• Intel Atom® x6413E (Elkhart Lake) processor
• SUS 316 / AISI 316 stainless steel housing for food, beverage and chemical environments
• Sealed to IP65 for front and chassis
• 17.0 inch 1280 x 1024 projected capacitive (PCAP) multi-touch, 350 nits, 1000:1 contrast
• True flat edge-to-edge front panel; supports Glove and Rain touch modes
• Various mounting options: VESA (default) and Yoke (optional)
• Fanless thermal design
• Waterproof I/O: M12 connector for 2 x USB2.0, M12 RS232, waterproof RJ45 Gigabit LAN
• Optional optical bonding; optional WLAN/Bluetooth
• 12V DC input (M12 type)

Overview
The R17IE3S-SPM1 is a 17-inch chassis Panel PC designed for industrial applications that require regular washdown and strict hygiene, such as food, beverage and pharmaceutical production. The stainless steel SUS 316 enclosure and true flat, edge-to-edge PCAP front enable easy cleaning and resistance to corrosive environments.

The projected capacitive multi-touch supports multi-finger gestures and operation with gloves or in wet conditions. The covered chassis design and multiple mounting options simplify integration into production lines, process control stations and hygienic workcells.

Certifications

• IP65
• CE
• FCC

Technical specifications

• Display: 17.0 inches; Touch/Glass: Projected Capacitive Multi Touch; Resolution: 1280 x 1024; Brightness: 350 nits; Contrast: 1000:1; Active area: 337.920 x 270.336 mm; View angles: 85/85/80/80
• System: Processor: Intel Atom® x6413E (up to 3.0 GHz); Memory: 4 GB default, optional 8 GB / 16 GB; Storage: 128 GB SSD default, optional 256/512 GB/1 TB/2 TB SSD; Ethernet: Intel® controller; OS options: Windows 11 IoT Enterprise 64-bit / Windows 11 Pro 64-bit / Windows 10 IoT Enterprise 64-bit / Linux Ubuntu 22.04; WLAN/Bluetooth optional
• Mechanical: Dimensions: 412 x 344 x 61.3 mm; Mounting: VESA default, Yoke optional; Enclosure: Stainless housing; Cooling: Fanless
• Environment: Operating humidity 10% to 90% RH non-condensing; Operating temperature 0°C to 45°C; Storage temperature -20°C to 60°C; IP rating IP65
• IO Ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector; Indicators: LED power, LED storage
• Controls: 1 x Power button, 1 x Reset button
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)
