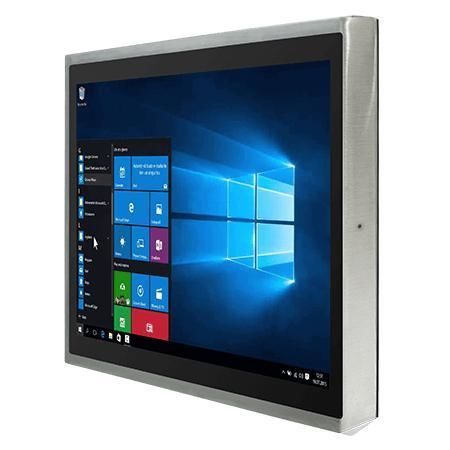

PCAP touchscreen panel PC R15IAD3S-SPC3

multi-touch screen15"Intel® Core i5-1235U

Overview
The R15IAD3S-SPC3 is a 15-inch IP65 stainless steel Panel PC engineered for hygienic and harsh industrial environments such as food, beverage and pharmaceutical production. The fully sealed SUS 316 / AISI 316 chassis and true flat edge-to-edge front enable frequent cleaning and compliance with strict hygiene standards.

Key features

• 12th Generation Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel construction for food and chemical industries
• IP65 sealed enclosure for water and dust protection
• True flat, edge-to-edge front for easy cleaning
• Projected capacitive (P-CAP) flat multi-touch panel with Glove / Rain touch modes
• Various mounting options: VESA (default) and Yoke (optional)
• Multiple I/O: USB 2.0, RS232 serial, RJ45 10/100/1000 LAN with waterproof connectors
• Waterproof ports with adapter cables for external connectivity
• Optional optical bonding

Certifications

• IP65
• CE
• FCC

Specifications

• Display Size: 15.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Resolution: 1024 x 768
• Panel Brightness: 300 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Active Area: 304.1 x 228.1 mm
• Processor: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB (Default); optional 16GB, 32GB
• Storage: 128GB SSD (Default); optional 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet Controller: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating System (optional): Windows 11 IoT Enterprise (64-bit); Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (Ubuntu does not support Wake on Touch)
• WLAN / Bluetooth: optional
• Dimension: 378 x 301 x 56.4 mm
• Weight: 7.5 kg
• Mounting: VESA mount (Default); Yoke mount (Optional)
• Enclosure: Stainless Housing (SUS 316 / AISI 316)
• Cooling System: Fanless Design
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65
• Certification: CE, FCC
• IO Ports: 1 x M12 waterproof connector for 2 x USB 2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Giga LAN RJ45 connector
• Indicator: 1 x LED for power; 1 x LED for storage
• Control Buttons: 1 x Power Button; 1 x Reset Button
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power Rating: 12V DC (M12 type)
