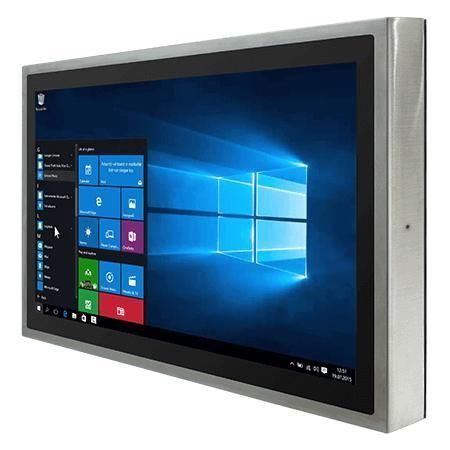

PCAP touchscreen panel PC W22IE3S-SPA3

multitouch screentouch screen21.5"

Key Features

• Intel Atom® x6413E Elkhart Lake processor (up to 3.0 GHz)
• SUS 316 / AISI 316 stainless steel enclosure suitable for food, beverage and chemical industries
• Sealed to IP65 for water and dust protection
• True flat, edge-to-edge front surface for easy cleaning
• Projected capacitive (P-CAP) multi-touch with Glove / Rain mode
• Various mounting options: VESA (default) and Yoke (optional)
• Wide I/O: USB 2.0 (M12), RS232 (M12), RJ45 Gigabit LAN (waterproof)
• Waterproof ports with adapter cables for external connectivity
• Optical bonding available (optional)

Waterproof All-Around
The Panel PC is certified to IP65 for protection against water and dust, enabling regular wash-downs and compliance with strict hygiene requirements in food, beverage and pharmaceutical environments.

Comprehensive Stainless Solution
A range of stainless HMI and Panel PC solutions designed for automation in food & beverage lines and chemical plants, offering corrosion resistance and easy cleaning.

Projected Capacitive Multi-Touch (P-CAP)
High-sensitivity P-CAP touchscreen with multi-touch gesture support (pinch-to-zoom, rotate, drag-and-drop) and Glove/Rain modes for industrial use.

Chassis Design
Covered chassis with true-flat front panel and edge-to-edge glass; supports multiple mounting brackets for flexible installation and maintenance.

Certifications

• IP65
• CE
• FCC

Technical specifications

• Model: W22IE3S-SPA3
• Display: 21.5 inches, 1920 x 1080, 250 nits, 3000:1 contrast, Active Area 476.64 x 268.11 mm
• Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
• Processor: Intel Atom® x6413E (up to 3.0 GHz)
• Memory: 4 GB (default); optional 8 GB / 16 GB
• Storage: 128 GB SSD (default); optional 256 GB / 512 GB / 1 TB / 2 TB SSD
• Ethernet: 1 x Intel® Gigabit Ethernet controller
• OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
• WLAN / Bluetooth: optional
• Dimensions: 541 x 337 x 56.2 mm
• Mounting: VESA (default); Yoke (optional)
• Enclosure: Stainless housing (SUS 316 / AISI 316)
• Cooling: Fanless design
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 45°C
• Storage temperature: -20°C to 60°C
• IP rating: IP65
• Certifications: CE, FCC
• I/O: 1 x M12 waterproof connector for 2 x USB 2.0; 1 x M12 waterproof connector for RS232; 1 x waterproof Gigabit RJ45
• Indicators: Power LED; Storage LED
• Controls: 1 x Power button; 1 x Reset button
• Accessories: 100~240V AC-DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws
• Power: 12 V DC (M12)
