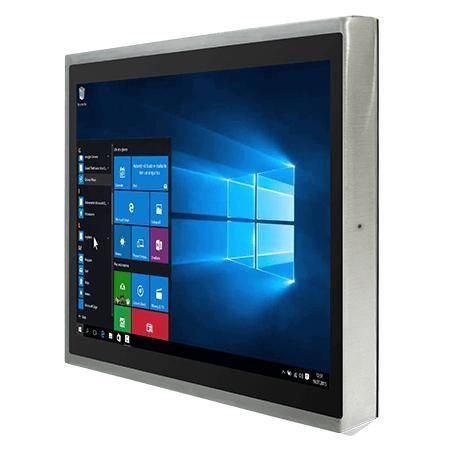

PCAP touchscreen panel PC R19IT3S-SPM1

multitouch screentouch screen19"

Overview
The R19IT3S-SPM1 is a 19-inch stainless steel IP65 panel PC with an 11th Gen Intel® Core™ i5 processor and projected capacitive multi-touch (P-CAP). Designed for hygienic and washdown environments, it combines a true flat edge-to-edge front, SUS316/AISI316 enclosure and waterproof I/O for reliable operation in food, beverage, pharmaceutical and chemical facilities.

Key Features

• Intel® Core™ i5-1135G7 (2.4GHz, up to 4.2GHz)
• SUS 316 / AISI 316 stainless steel housing for corrosion resistance and hygienic cleaning
• IP65 sealed front and enclosure for water and dust protection
• True flat edge-to-edge front surface, easy to clean
• Projected capacitive multi-touch with glove and rain modes
• VESA (default) and Yoke mount (optional)
• Waterproof M12 connectors for USB and RS232; waterproof RJ45 Giga LAN
• Optional optical bonding, WLAN/Bluetooth and expanded storage/memory

Product Details
Display
Size: 19.0 inches
Touch / Glass: Projected Capacitive Multi Touch Screen
Resolution: 1280 x 1024
Panel Brightness: 250 nits
Contrast Ratio: 1000:1
View Angles: 85,85,80,80
Active Area: 376.32 x 301.06 mm

System Specification
Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory: 4GB (default); optional 8GB, 16GB, 32GB
Storage: 128GB SSD (default); optional 256GB–4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
Ethernet: 2 x Intel® controllers; TPM 2.0; Optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04

Mechanical
Dimensions: 468 x 395 x 57 mm
Mounting: VESA (default); Yoke (optional)
Enclosure: SUS 316 / AISI 316 stainless steel
Cooling: Fanless design

Environment
Operating Temp: 0°C to 45°C
Operating Humidity: 10% to 90% RH, non-condensing
Storage Temp: -20°C to 60°C
IP rating: IP65

Certification
CE, FCC, IP65

IO Ports
USB: 1 x M12 waterproof connector for 2 x USB2.0
Serial: 1 x M12 waterproof connector for RS232
LAN: 1 x waterproof Giga LAN RJ45
Indicators: LED for power and storage

Control
Buttons: Power, Reset

Accessory
Included/optional: 100~240V AC-DC adapter with waterproof connector; power cord; external USB/COM/LAN cables with waterproof connectors; waterproof caps; manual; VESA screws

Power
Power input: 12V DC (M12 type)

Technical specifications

• Model: R19IT3S-SPM1
• Display size: 19.0"
• Touch: Projected Capacitive Multi-Touch (P-CAP)
• Resolution: 1280 x 1024; Brightness: 250 nits; Contrast: 1000:1
• Processor: Intel Core i5-1135G7
• Memory/Storage: 4GB / 128GB SSD default (expandable)
• Enclosure: SUS 316 / AISI 316 stainless steel
• IP rating: IP65; Certifications: CE, FCC
• I/O: M12 waterproof connectors, waterproof RJ45
• Mounting: VESA / Yoke
