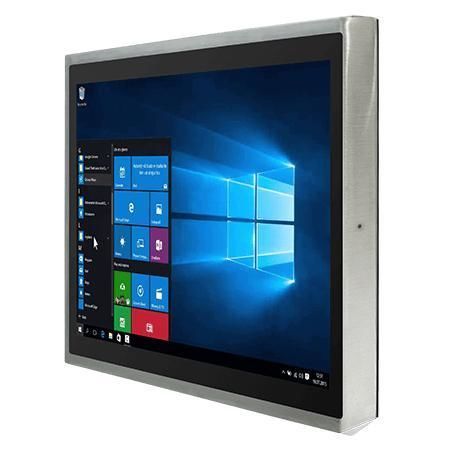

PCAP touchscreen panel PC R19IAD3S-SPM1

multi-touch screentouch screen19"

Overview
The R19IAD3S-SPM1 is a 19-inch industrial panel PC with a SUS 316 / AISI 316 stainless steel housing and IP65 front protection. Designed for food, beverage, pharmaceutical and chemical environments, it combines a flat edge-to-edge P-Cap multi-touch display with industrial-grade I/O and fanless operation.

Key features

• 12th Gen Intel® Core™ i5-1235U (3.3 GHz base, up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel enclosure for hygienic environments
• Front panel sealed to IP65 (water and dust protection)
• True-flat, edge-to-edge P-Cap multi-touch display with Glove and Rain modes
• Fanless design and multiple mounting options (VESA, Yoke)
• Waterproof M12 and RJ45 connectors for external I/O
• TPM 2.0 security and optional optical bonding

Certifications

• IP65
• FCC
• CE

Applications & chassis design
Engineered for regular washdowns and strict hygiene procedures, the sealed stainless steel chassis supports integration into production lines, kiosks and control stations in food & beverage, pharmaceutical and chemical plants.

Touch & display
The 19.0" projected capacitive multi-touch panel (1280 x 1024, 250 nits, 1000:1) provides high readability and supports multi-finger gestures for data entry, image manipulation and touchscreen control in gloved or wet conditions.

System, memory and storage

• Processor: Intel® Core™ i5-1235U
• Memory: 8GB standard; 16GB / 32GB optional
• Storage: 128GB SSD standard; optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" drive (optional)
• OS options: Windows 11 IoT Enterprise 64-bit, Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Wake on Touch not supported on some OS)

I/O and connectivity

• 2 x Intel® Ethernet controllers, 1 x waterproof Giga LAN RJ45
• 1 x M12 waterproof connector for 2 x USB2.0
• 1 x M12 waterproof connector for RS232
• Optional WLAN and Bluetooth
• LED indicators for power and storage

Mechanical, environment & power

• Dimensions: 468 x 395 x 57 mm
• Mounting: VESA (default), Yoke (optional)
• Operating temp: 0°C to 45°C; storage: -20°C to 60°C
• Operating humidity: 10% to 90% RH, non-condensing
• Power: 12V DC (M12 type)

Accessories & options

• 100~240V AC to DC adapter with waterproof connector
• External waterproof USB/COM/LAN cables and waterproof caps
• Optional optical bonding, expanded storage and memory

Technical specifications

• Display Size: 19.0 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1280 x 1024
• Brightness: 250 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Active Area: 376.32 x 301.06 mm
• Processor: Intel® Core™ i5-1235U 3.3GHz (up to 4.40 GHz)
• Memory: 8GB (Default); 16GB / 32GB (Optional)
• Storage: 128GB SSD (Default); optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• IO Ports: M12 waterproof USB (2 x USB2.0), M12 RS232, Waterproof Giga LAN RJ45
• Indicators: Power LED, Storage LED
• Buttons: Power, Reset
• Enclosure: SUS 316 / AISI 316 stainless housing
• Cooling: Fanless design
• IP Rating: IP65
• Certifications: CE, FCC
