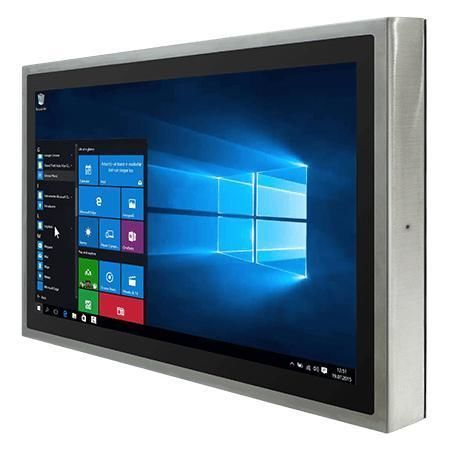

Panel PC with touch screen W24IT3S-SPA2

PCAP touchscreenmultitouch screenmulti-touch screen

Key features

• 11th Gen Intel® Core™ i5-1135G7 (2.4 GHz, up to 4.2 GHz)
• SUS 316 / AISI 316 stainless steel enclosure for food and chemical environments
• IP65-rated front panel and sealed chassis for water and dust protection
• 24.0" Full HD (1920 x 1080) display with true flat edge-to-edge front
• Projected capacitive (P-Cap) multi-touch with Glove and Rain modes
• Various mounts: VESA (default) and Yoke (optional)
• Rich I/O: USB 2.0 (M12), RS232 (M12), Waterproof Gigabit RJ45; waterproof adapter cables
• Optional optical bonding and TPM 2.0

Overview
The W24IT3S-SPA2 is a 24-inch industrial panel PC designed for hygienic and washdown environments. Its SUS316 stainless housing and IP65 sealing enable routine cleaning and reliable operation in food, beverage, pharmaceutical and chemical production areas.

Stainless solution for regulated environments
This panel PC is part of a stainless HMI portfolio intended for automation tasks where corrosion resistance and strict hygiene are required. The stainless construction reduces contamination risk and simplifies maintenance.

Projected Capacitive Multi-Touch (P-CAP)
High-sensitivity multi-touch supports gestures (pinch, rotate, drag-and-drop) and specific modes for gloved or wet operation, improving operator efficiency on the factory floor.

Chassis and mounting
Covered chassis with true-flat front supports multiple mounting configurations. Fanless cooling and robust mechanical design provide long-term reliability in industrial settings.

Certifications

• IP65
• CE
• FCC

Technical specifications (selection)

• Display: 24.0 inches, 1920 x 1080, 250 nits, 3000:1 contrast, Active Area 527.04 x 296.46 mm
• Touch: Projected Capacitive Multi-Touch; Glove / Rain mode
• Processor: Intel Core i5-1135G7 (2.4GHz, up to 4.2GHz)
• Memory: 4GB default (options: 8GB, 16GB, 32GB)
• Storage: 128GB SSD default (options up to 4TB); 1 x SATA III for 2.5" HDD/SSD (up to 2TB, optional)
• Ethernet: 2 x Intel® Ethernet Controller; 1 x Waterproof Gigabit RJ45
• Security: TPM 2.0
• OS: Optional Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04
• Dimensions: 620 x 390 x 56 mm; Enclosure: SUS316 / AISI316 stainless
• Environment: Operating 0°C to 45°C; Humidity 10%–90% RH non-condensing; IP65
• I/O: 1 x M12 (2 x USB2.0), 1 x M12 (RS232), Waterproof LAN; LED indicators; Power/Reset buttons
• Power: 12V DC (M12)
• Accessories: 100–240V AC to DC adapter (waterproof), power cord, waterproof external cables and caps, VESA screws
