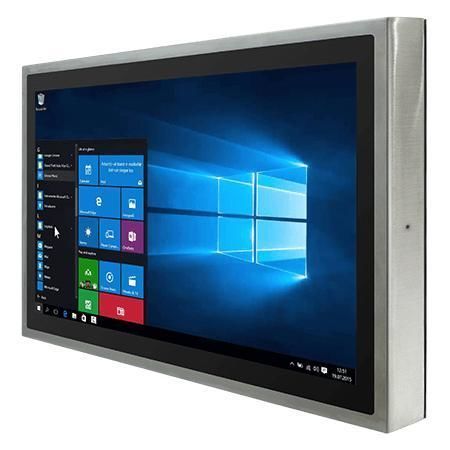

PCAP touchscreen panel PC W24IAD3S-SPA2

multitouch screen24"Intel® Core i5-1235U

Overview
Winmate W24IAD3S-SPA2 is a 24" chassis Panel PC with Intel® Core™ i5-1235U, full IP65 waterproof stainless steel enclosure (SUS316 / AISI316), edge-to-edge flat front for easy cleaning, projected capacitive multi-touch (P-CAP) and multiple mounting options (VESA default, Yoke optional).

Highlights

• 12th Gen Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• SUS 316 / AISI 316 stainless steel housing for food, beverage and chemical environments
• Sealed IP65 enclosure for water and dust protection
• True flat edge-to-edge front surface for hygienic cleaning
• Projected capacitive multi-touch (P-CAP) with glove and rain mode support
• Various mounting solutions: VESA mount (default) and Yoke mount (optional)
• Waterproof I/O with adapter cables: USB, RS232 serial, Gigabit RJ45 LAN
• Optional optical bonding

Certifications

• IP65
• FCC
• CE

Additional Overview Details
The unit targets hygienic and industrial automation applications, offering all-around waterproof protection, a full stainless solution for HMI and Panel PC deployments, high-sensitivity P-CAP multi-touch (multi-finger gestures supported) and a covered chassis design that accommodates different mounting brackets for flexible installation and maintenance.

Specifications / Technical details

• Display — Size: 24.0 inches; Touch / Glass: Projected Capacitive Multi Touch Screen; Resolution: 1920 x 1080; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; View Angles: 89/89/89/89; Active Area: 527.04 x 296.46 mm
• Processor — Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory — 8GB (Default); 16GB (Optional); 32GB (Optional)
• Storage — 128GB SSD (Default); optional 256GB / 512GB / 1TB / 2TB / 4TB SSD; 1 x SATA III for 2.5" SSD/HDD up to 2TB (Optional)
• Ethernet — 2 x Intel® Ethernet Controller
• Security — TPM 2.0
• Operating System — Windows 11 IoT Enterprise (64-bit) (Optional); Windows 11 Pro 64-bit (Optional); Linux Ubuntu 22.04 (Optional, does not support Wake on Touch)
• Wireless — WLAN: optional; Bluetooth: optional
• Mechanical — Dimensions: 620 x 390 x 56 mm; Mounting: VESA mount (Default), Yoke mount (Optional); Enclosure: Stainless housing; Cooling System: Fanless design
• Environment — Operating Humidity: 10% to 90% RH non-condensing; Operating Temperature: 0°C to 45°C; Storage Temperature: -20°C to 60°C; IP rating: IP65
• Certifications — CE, FCC, IP65
• IO Ports — USB: 1 x M12 waterproof connector for 2 x USB2.0; Serial: 1 x M12 waterproof connector for RS232; LAN: 1 x waterproof Gigabit RJ45 connector; Indicators: 1 x LED power indicator, 1 x LED storage indicator
• Control — Buttons: 1 x Power Button, 1 x Reset Button
• Accessory — 100~240V AC to DC Adapter with waterproof connector; Power Cord; External USB cable with waterproof connector; External COM cable with waterproof connector; External LAN cable with waterproof connector; Waterproof caps; Manual; VESA screws
• Power — Power Rating: 12V DC (M12 type)
