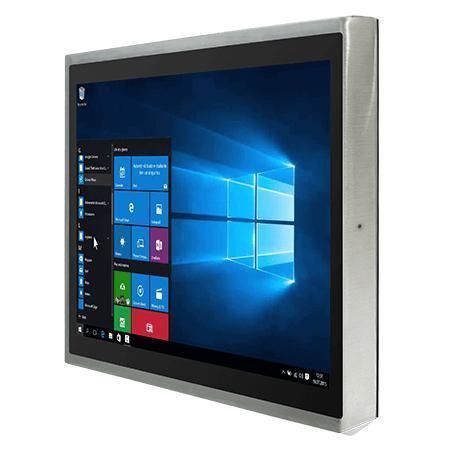

PCAP touchscreen panel PC R17IT3S-SPM1

multitouch screen17"Intel® Core™ i5-1135G7

Overview
The R17IT3S-SPM1 is a 17.0-inch IP65-rated stainless steel P-CAP panel PC designed for food, beverage, pharmaceutical and chemical production environments requiring frequent washdown and strict hygiene. It integrates an 11th Generation Intel® Core™ i5 processor, SUS316/AISI316 housing, true flat edge-to-edge front surface and multiple mounting options.

Key Features

• Intel® Core™ i5-1135G7 (11th Gen) 2.4GHz (up to 4.2GHz)
• SUS316 / AISI 316 stainless steel enclosure suitable for food and chemical industries
• IP65 sealed enclosure protecting against water and dust
• True flat, edge-to-edge front for easy cleaning
• Projected capacitive (P-CAP) multi-touch panel with glove and rain modes
• Mounting options: VESA (standard) and Yoke (optional)
• Multiple I/O including USB 2.0 (M12), RS232 (M12), RJ45 Gigabit LAN (waterproof)
• Waterproof external connectors and adapter cables
• Optional optical bonding

Certifications

• IP65
• FCC
• CE

Product Highlights

• Designed for regular washdown and strict hygiene procedures in industrial food, beverage and pharmaceutical sites.
• Stainless steel design for integration in automated production lines.
• P-CAP multi-touch supporting gestures such as rotate, drag-and-drop and multi-finger zoom.
• Covered chassis design with support for different mounting brackets for straightforward installation.

Display

• Size: 17.0 inches
• Touch / Glass: Projected Capacitive Multi-Touch
• Resolution: 1280 x 1024
• Brightness: 350 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 85/85/80/80
• Active Area: 337.920 x 270.336 mm

System Specification

• Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
• Memory: 4GB default; optional 8GB, 16GB, 32GB
• Storage: 128GB SSD default; optional 256GB–4TB; optional 1 x SATA III for 2.5-inch SSD/HDD up to 2TB
• Ethernet: 2 x Intel® Ethernet Controller
• Security: TPM 2.0
• Operating System: Windows 11 IoT Enterprise 64-bit; Windows 11 Pro 64-bit; Linux Ubuntu 22.04 (optional)
• WLAN / Bluetooth: optional

Mechanical

• Dimensions: 412 x 344 x 61.3 mm
• Mounting: VESA (default); Yoke (optional)
• Enclosure: SUS316 stainless steel
• Cooling: Fanless design

Environment

• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -20°C to 60°C
• IP Rating: IP65

Certification

• CE
• FCC

I/O Ports

• USB: 1 x M12 waterproof connector for 2 x USB2.0
• Serial: 1 x M12 waterproof connector for RS232
• LAN: 1 x waterproof Gigabit RJ45 connector
• Indicators: 1 x LED for power; 1 x LED for storage

Control

• Buttons: 1 x Power; 1 x Reset

Accessories

• 100~240V AC to DC adapter with waterproof connector
• Power cord
• External USB/COM/LAN cables with waterproof connectors
• Waterproof caps
• Manual
• VESA screws

Power

• Power Rating: 12V DC (M12 type)

Technical Specifications

• Model: R17IT3S-SPM1
• Brand: Winmate
• Display: 17.0-inch P-CAP, 1280 x 1024, 350 nits
• CPU: Intel Core i5-1135G7 (11th Gen)
• Memory: 4GB default, up to 32GB optional
• Storage: 128GB SSD default; multiple SSD/HDD options and SATA expansion
• Ethernet: Dual Intel controllers
• Protection: IP65, SUS316 stainless steel
• Mounting: VESA default, optional Yoke
• Operating Temperature: 0°C to 45°C
