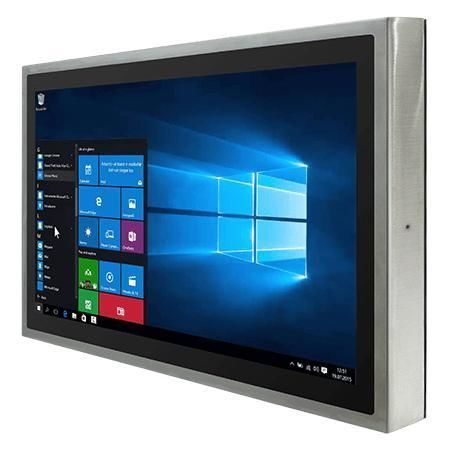

PCAP touchscreen panel PC W24IE3S-SPA2

multi-touch screentouch screen24"

Key Features

• Intel Atom® x6413E Elkhart Lake processor
• SUS 316 / AISI 316 stainless steel housing for food, beverage and chemical industries
• Sealed to IP65 for protection against water and dust
• True flat, edge-to-edge front surface for easy cleaning
• Projected capacitive (P-Cap) multi-touch panel with glove and rain modes
• Various mounting options: VESA (default) and Yoke mount (optional)
• Multiple I/Os including USB 2.0, RS232 serial and RJ45 10/100/1000 LAN
• Waterproof ports with adapter cables for external connectivity
• Optical bonding available (optional)

Certifications

• IP65
• FCC
• CE

Overview
Waterproof All-Around
The Panel PC meets IP65 water and dust resistance for regular cleaning processes and strict hygiene standards in food, beverage and pharmaceutical environments.
Comprehensive Stainless Solution
The stainless-steel HMI and Panel PC range is designed for automation in Food & Beverage and chemical plants where corrosion resistance and cleanability are required.
Projected Capacitive Multi-Touch (P-CAP)
The high-sensitivity P-CAP touchscreen supports multi-touch gestures (zoom, rotate, drag-and-drop) and is usable with gloves or in rain mode.
Chassis Design
The covered stainless chassis supports various mounting brackets and provides a flat, hygienic front for easy maintenance.

Technical specifications

• Display
  • Size: 24.0 inches
  • Touch / Glass: Projected Capacitive Multi Touch Screen (P-CAP)
  • Resolution: 1920 x 1080
  • Panel Brightness: 250 nits
  • Contrast Ratio: 3000:1
  • View Angles: 89/89/89/89
  • Active Area: 527.04 x 296.46 mm
• System Specification
  • Processor: Intel Atom® x6413E (up to 3.0 GHz)
  • Memory: 4 GB (Default); optional 8 GB or 16 GB
  • Storage: 128 GB SSD (Default); optional 256 GB, 512 GB, 1 TB, 2 TB
  • Ethernet controller: 1 x Intel® Ethernet Controller
  • Operating System (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro (64-bit), Windows 10 IoT Enterprise (64-bit), Linux Ubuntu 22.04
  • WLAN / Bluetooth: optional
• Mechanical
  • Dimensions: 620 x 390 x 56 mm
  • Mounting: VESA mount (Default); Yoke mount (Optional)
  • Enclosure: Stainless Housing (SUS 316 / AISI 316)
  • Cooling System: Fanless Design
• Environment
  • Operating Humidity: 10% to 90% RH, non-condensing
  • Operating Temperature: 0°C to 45°C
  • Storage Temperature: -20°C to 60°C
  • IP rating: IP65
• Certification
  • CE, FCC
• IO Ports
  • USB Port: 1 x M12 waterproof connector for 2 x USB2.0
  • Serial Port: 1 x M12 waterproof connector for RS232
  • LAN: 1 x Waterproof Giga LAN RJ45 connector (10/100/1000)
  • Indicators: 1 x LED power indicator; 1 x LED storage indicator
• Control
  • 1 x Power Button; 1 x Reset Button
• Accessory
  • 100~240V AC to DC adapter with waterproof connector; Power cord
  • External USB / COM / LAN cables with waterproof connectors; Waterproof caps; Manual; VESA screws
• Power
  • Power Rating: 12V DC (M12 type)
