PCAP touchscreen panel PC W22IT3S-SPA3
multitouch screentouch screen21.5"

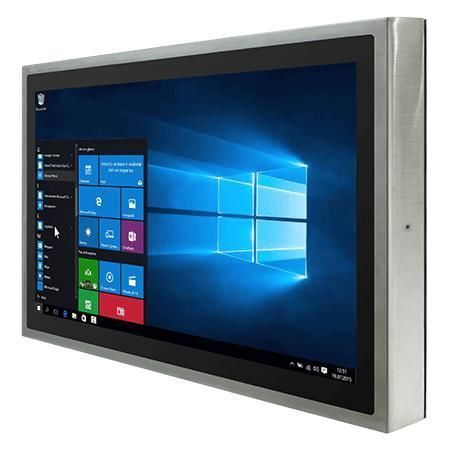

PCAP touchscreen panel PC - W22IT3S-SPA3 - Winmate, Inc. - multitouch screen / touch screen / 21.5"
PCAP touchscreen panel PC - W22IT3S-SPA3 - Winmate, Inc. - multitouch screen / touch screen / 21.5"
PCAP touchscreen panel PC - W22IT3S-SPA3 - Winmate, Inc. - multitouch screen / touch screen / 21.5" - image - 2
PCAP touchscreen panel PC - W22IT3S-SPA3 - Winmate, Inc. - multitouch screen / touch screen / 21.5" - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multitouch screen, touch screen
Display size
21.5"
Processor
Intel® Core™ i5-1135G7
Resolution
1920 x 1080
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, stainless steel frame
Mounting
VESA mounting
Applications
industrial, for the food industry, for the pharmaceutical industry, for the chemical industry, for hygienic applications
Protection level
IP65
Other characteristics
all-in-one, HMI, WiFi, Bluetooth, USB 2.0, Ethernet, RJ45
Memory size

Min.: 4 GB

Max.: 32 GB

Description

Key Features
  • 11th Gen Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
  • SUS 316 / AISI 316 stainless steel enclosure for food and chemical environments
  • Sealed to IP65 for protection against water and dust
  • True flat, edge-to-edge front surface for easy cleaning
  • Projected capacitive (P-Cap) multi-touch panel with high readability
  • Multiple mounting options: VESA (default) and Yoke (optional)
  • Extensive I/O: USB 2.0, RS232 serial, RJ45 10/100/1000 LAN
  • Waterproof ports with adapter cables for external connectivity
  • Support for Glove and Rain touch modes
  • Optical bonding available (optional)


Overview
  • Waterproof all-around: IP65-rated design supports regular washdown and strict hygiene procedures in Food, Beverage and Pharmaceutical plants.
  • Comprehensive stainless solution: stainless housing and HMI options tailored for automation in food, beverage and chemical facilities.
  • Projected Capacitive Multi-Touch (P-CAP): high-sensitivity touch supporting multi-finger gestures (pinch, rotate, drag-and-drop).
  • Chassis design: covered chassis with multiple bracket options for easy installation and a clean appearance.


Certifications
  • IP65
  • CE
  • FCC


Accessories (included / optional)
  • 100~240V AC to DC adapter with waterproof connector
  • Power cord
  • External USB cable with waterproof connector
  • External COM cable with waterproof connector
  • External LAN cable with waterproof connector
  • Waterproof caps
  • Manual
  • VESA screws


Connectivity & I/O
  • USB: 1x M12 waterproof connector for 2 x USB2.0
  • Serial: 1x M12 waterproof connector for RS232
  • LAN: 1x waterproof Gigabit RJ45 connector
  • Indicators: 1x LED for power, 1x LED for storage


Power & Control
  • Power rating: 12V DC (M12 type)
  • Buttons: 1x Power button, 1x Reset button


Applications
  • Hygienic production areas requiring frequent cleaning (Food & Beverage, Pharmaceutical)
  • Industrial automation requiring sealed HMIs and panel PCs
  • Deployments demanding stainless housings and IP65 ingress protection


Specifications / Technical data
  • Display: Size: 21.5 inches; Touch / Glass: Projected Capacitive Multi-Touch; Resolution: 1920 x 1080; Panel Brightness: 250 nits; Contrast Ratio: 3000:1; View Angles: 89/89/89/89; Active Area: 476.64 x 268.11 mm
  • System Specification: Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz); Memory: 4GB (default) — options: 8GB, 16GB, 32GB; Storage: 128GB SSD (default) — options: 256GB, 512GB, 1TB, 2TB, 4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional); Ethernet controller: 2 x Intel® Ethernet Controller; Security: TPM 2.0; OS (optional): Windows 11 IoT Enterprise (64-bit), Windows 11 Pro 64-bit, Linux Ubuntu 22.04 (Ubuntu does not support Wake on Touch); WLAN/Bluetooth: optional
  • Mechanical: Dimension: 541 x 337 x 56.2 mm; Mounting: VESA (default), Yoke (optional); Enclosure: Stainless housing (SUS 316 / AISI 316); Cooling system: Fanless design
  • Environment: Operating Humidity: 10% to 90% RH, non-condensing; Operating Temperature: 0°C to 45°C; Storage Temperature: -20°C to 60°C; IP rating: IP65
  • Certification: CE, FCC
  • I/O Ports: USB: 1x M12 waterproof connector for 2 x USB2.0; Serial: 1x M12 waterproof connector for RS232; LAN: 1x waterproof Giga LAN RJ45 connector; Indicators: 1x LED for power, 1x LED for storage
  • Control: Buttons: 1x Power button, 1x Reset button
  • Accessory (detailed): 100~240V AC to DC adapter with waterproof connector; Power cord; External USB/COM/LAN cables with waterproof connectors; Waterproof caps; Manual; VESA screws
  • Power: Power rating: 12V DC (M12 type)
