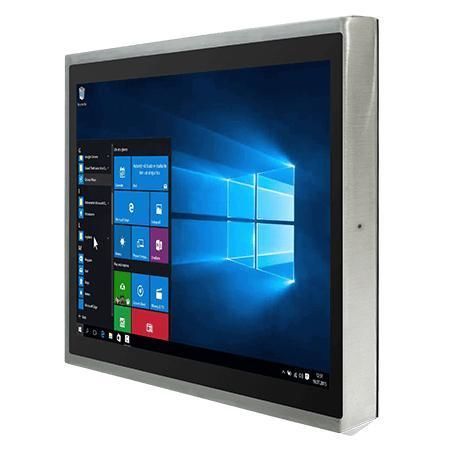

PCAP touchscreen panel PC R15IT3S-SPC3
multi-touch screen15"Intel® Core™ i5-1135G7

PCAP touchscreen panel PC - R15IT3S-SPC3 - Winmate, Inc. - multi-touch screen / 15" / Intel® Core™ i5-1135G7
PCAP touchscreen panel PC - R15IT3S-SPC3 - Winmate, Inc. - multi-touch screen / 15" / Intel® Core™ i5-1135G7
PCAP touchscreen panel PC - R15IT3S-SPC3 - Winmate, Inc. - multi-touch screen / 15" / Intel® Core™ i5-1135G7 - image - 2
PCAP touchscreen panel PC - R15IT3S-SPC3 - Winmate, Inc. - multi-touch screen / 15" / Intel® Core™ i5-1135G7 - image - 3
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Screen type
PCAP touchscreen, multi-touch screen
Display size
15"
Processor
Intel® Core™ i5-1135G7
Resolution
1024 x 768
Operating system
Linux® Ubuntu™, Windows 11 IoT Enterprise, Windows 11 Pro
Construction
fanless, stainless steel frame, in metal housing
Mounting
VESA mounting
Applications
industrial, for the food industry, for the pharmaceutical industry, for the chemical industry, for hygienic applications
Protection level
IP65
Other characteristics
USB 2.0, Ethernet, RJ45
Memory size

4 GB, 8 GB, 16 GB, 32 GB

Description

Key Features
  • 11th Gen Intel® Core™ i5-1135G7 2.4GHz (up to 4.2GHz)
  • IP65 sealed stainless steel enclosure (SUS316 / AISI 316) for hygiene-sensitive environments
  • 15.0-inch P-Cap projected capacitive multi-touch display, true flat edge-to-edge front
  • Support for Glove and Rain touch modes
  • Multiple mounting options: VESA (default) and Yoke mount (optional)
  • Waterproof I/O with M12 / sealed connectors and adapter cables
  • Fanless design with optional optical bonding


Certifications
  • IP65
  • FCC
  • CE


Overview
  • Hygienic design: Sealed stainless housing and flat front facilitate cleaning routines in Food, Beverage, Pharmaceutical and chemical production.
  • Industrial connectivity: Multiple Ethernet, USB and serial interfaces with waterproof connectors for reliable integration into production systems.
  • Touch usability: Projected capacitive multi-touch supports gestures (pinch, rotate, drag-and-drop) and high readability for operator panels.


Technical specifications
  • Model: R15IT3S-SPC3
  • Display: 15.0 inches; Projected Capacitive Multi Touch; Resolution 1024 x 768; Brightness 300 nits; Contrast 2000:1; Active area 304.1 x 228.1 mm
  • System: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz); Memory 4GB (default) — options 8/16/32GB; Storage 128GB SSD (default) — options 256/512GB, 1/2/4TB; optional 1 x SATA III for 2.5" SSD/HDD up to 2TB
  • Ethernet / Security / OS: 2 x Intel® Ethernet Controller; TPM 2.0; OS options: Windows 11 IoT Enterprise (64-bit), Windows 11 Pro, Linux Ubuntu 22.04 (optional, Wake on Touch not supported)
  • Mechanical: 378 x 301 x 56.4 mm; Weight 7.5 kg; Enclosure Stainless Housing (SUS316 / AISI316); Fanless


I/O & Control
  • USB: 1 x M12 waterproof connector for 2 x USB 2.0
  • Serial: 1 x M12 waterproof connector for RS232
  • LAN: 1 x waterproof Gigabit RJ45 connector
  • Indicators: Power LED, Storage LED
  • Buttons: Power, Reset


Mounting & Accessories
  • VESA mount (default); Yoke mount (optional)
  • Accessories: 100~240V AC to DC adapter with waterproof connector, power cord, external USB/COM/LAN adapter cables with waterproof connectors, waterproof caps, manual, VESA screws


Environmental & Power
  • Operating humidity: 10% to 90% RH (non-condensing)
  • Operating temperature: 0°C to 45°C; Storage temperature: -20°C to 60°C
  • Power: 12V DC (M12 type)
