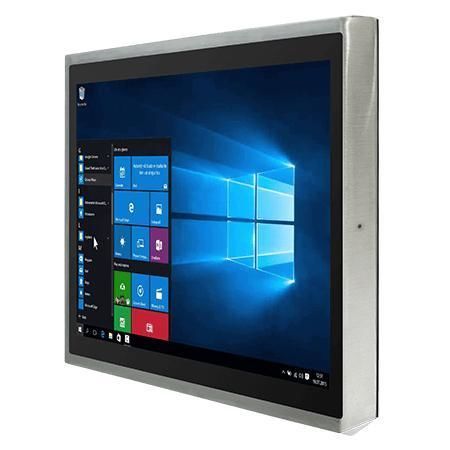

PCAP touchscreen panel PC R17IAD3S-SPM1

multitouch screentouch screen17"

Overview
The R17IAD3S-SPM1 is a 17" industrial Panel PC with a sealed IP65 SUS316 stainless steel P‑Cap chassis, designed for hygienic and washdown environments in food, beverage and chemical industries. It integrates a 12th Gen Intel® Core™ i5-1235U processor and multiple mounting and I/O options for industrial integration.

Key features

• Intel® Core™ i5-1235U (12th Gen) 3.3 GHz (up to 4.40 GHz)
• SUS316 / AISI 316 stainless steel housing for hygienic environments
• IP65 sealed front and chassis for water and dust protection
• True flat edge-to-edge front panel for easy cleaning
• Projected capacitive multi-touch (P‑Cap) with Glove / Rain modes
• VESA (default) and Yoke (optional) mounting
• Waterproof I/O: M12 connectors for USB and RS232, waterproof Gigabit RJ45
• Optional optical bonding; fanless cooling

Applications & benefits

• Designed for HMI and process control in food & beverage, pharmaceutical and chemical production lines
• IP65 and stainless construction enable regular cleaning and compliance with hygiene standards
• Multi-touch P‑Cap improves data entry and visualization in industrial workflows

Certifications

• IP65
• CE
• FCC

Technical specifications

• Display: 17.0 inches, 1280 x 1024, 350 nits, 1000:1 contrast, active area 337.920 x 270.336 mm
• Touch / Glass: Projected Capacitive Multi Touch (P‑Cap)
• CPU: Intel® Core™ i5-1235U 3.3 GHz (up to 4.40 GHz)
• Memory: 8GB (default); options 16GB, 32GB
• Storage: 128GB SSD (default); optional 256GB/512GB/1TB/2TB/4TB; 1 x SATA III for 2.5" SSD/HDD up to 2TB (optional)
• Ethernet: 2 x Intel® Ethernet Controller; 1 x waterproof Giga LAN RJ45
• Security: TPM 2.0
• OS: Windows 11 IoT Enterprise / Windows 11 Pro / Ubuntu 22.04 (optional; Wake on Touch not supported on Ubuntu)
• WLAN / Bluetooth: optional
• Dimensions: 412 x 344 x 61.3 mm; Mounting: VESA (default), Yoke (optional)
• Enclosure: Stainless Housing (SUS316 / AISI 316); Cooling: Fanless
• Operating humidity: 10%–90% RH non‑condensing; Operating temp: 0°C to 45°C; Storage temp: -20°C to 60°C
• I/O ports: 1 x M12 waterproof connector for 2 x USB2.0; 1 x M12 waterproof for RS232; 1 x waterproof Giga LAN RJ45
• Indicators & controls: LED power; LED storage; 1 x Power button; 1 x Reset button
• Accessories: 100~240V AC to DC adapter with waterproof connector; power cord; external waterproof USB/COM/LAN cables; waterproof caps; manual; VESA screws
• Power: 12V DC (M12 type)
