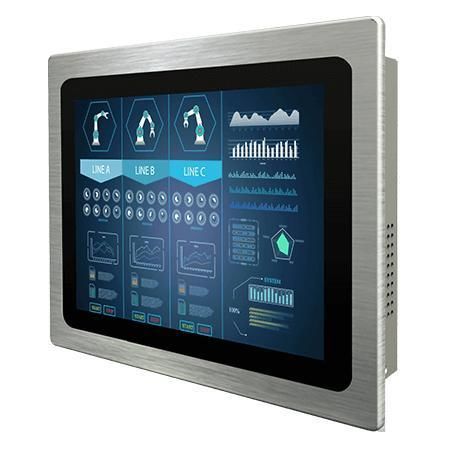

TFT monitor R10L100-PPP1HB

multi-touch screenprojected capacitive touchscreenindustrial

Overview
Winmate R10L100-PPP1HB is a 10.4" high-brightness multi-touch panel-mount display engineered for industrial visualization, control rooms and equipment monitoring. It delivers a reliable integration platform for OEMs, system integrators and industrial buyers requiring long lifecycle and field-proven operation.

Key Features

• 10.4" TFT, 800 x 600 resolution
• High brightness: 1000 nits
• Projected capacitive (PCAP) multi-touch
• VGA input (standard); HDMI/DVI optional
• Panel mount and VESA mounting options
• Front IP65 ingress protection

Product Highlights

• Low power consumption and fanless thermal design for continuous operation in production environments
• Flexible mounting (panel, VESA) for integration into control consoles, kiosks and embedded equipment
• Metal housing with aluminum bezel for industrial durability and stable image quality
• Customization available: panel brightness, glass treatment, I/O configuration and power options

Certifications

• CE
• FCC

Included Accessories

• 1 x VGA cable
• 1 x HDMI cable
• 100~240V AC to DC adapter
• Power cord
• Manual
• VESA screws (varies by product)

Optional Accessories

• Remote controller (optional)

Technical specifications

• Model: R10L100-PPP1HB
• Size: 10.4 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 800 x 600
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 400:1
• View Angles: 70, 70, 70, 60 (deg)
• Display Color: 262K Colors
• Active Area: 211.2 x 158.4 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimensions (W x H x D): 284.2 x 252 x 55 mm
• Cut out: 262 x 218 mm
• Weight: 2.3 kg
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Control Buttons: 5 keys: -, +, Power, Esc, Enter
