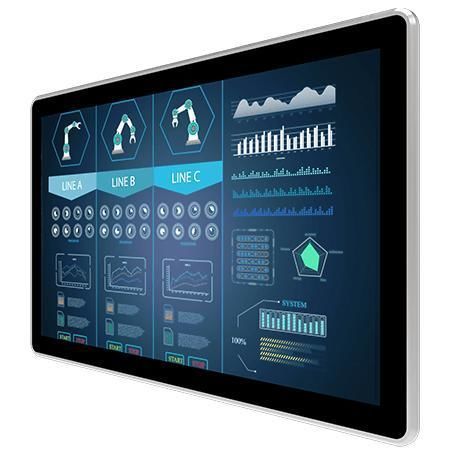

LCD monitor W22L100-PPA3

multitouch screenprojected capacitive touchscreenindustrial

Product Overview

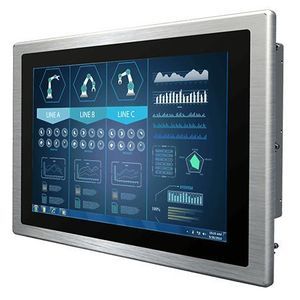

Winmate W22L100-PPA3 is a 21.5" Multi-Touch Panel Mount Display designed for industrial visualization, control rooms, and equipment monitoring. It addresses the needs of industrial buyers, OEMs and system integrators requiring long-lifecycle, mission-capable displays with front IP65 protection and an aluminum housing.

Key Features

• 21.5" display with 1920 x 1080 (Full HD)
• Panel mount (Panel Mount / VESA Mount)
• VGA input (standard); HDMI and DVI optional
• Aluminum housing with metal bezel
• Front IP65 protection
• Projected capacitive multi-touch (P-CAP)
• Fanless design for low power and reliable operation

Product Details
Low Power Consumption
Designed for low power draw and effective heat dissipation, the display supports continuous operation in production lines and industrial cabinets.

Easy Mounting
Universal mounting options support panel mount and VESA mounting for wall, desk or control-panel installation across industrial environments.

High Reliability for Industrial Applications
Engineered with a metal enclosure and industrial-grade components, the product suits factory automation, HMI, kiosks and control rooms where long-term availability and stable performance are required.

Outstanding Image Quality
Full HD 1920 x 1080 resolution, wide viewing angles and high contrast ensure clear readability for monitoring and signage applications.

Display Ports and Customization
Standard configuration includes VGA; HDMI, DVI, audio and speaker options available. Customization options cover size, LCD brightness, glass surface treatment, display ports and regional power plug styles.

Certifications

• CE
• FCC

Technical specifications

• Model: W22L100-PPA3
• Size: 21.5 inches
• Touch / Glass: Projected Capacitive Multi Touch Screen
• Resolution: 1920 x 1080
• Panel Brightness: 250 nits
• Contrast Ratio: 3000:1
• View Angles: 89, 89, 89, 89
• Display Color: 16.7M Colors
• Active Area: 476.64 x 268.11 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 60°C
• IP rating: Front IP65
• Certification: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 533 x 324 x 77 mm
• Cut out: 504 x 304 mm
• Mounting: VESA Mount / Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
• Power Rating: 12V DC in (standard); 24V DC in (optional)
• Control: 5 Keys: -, +, Power, Esc, Enter
