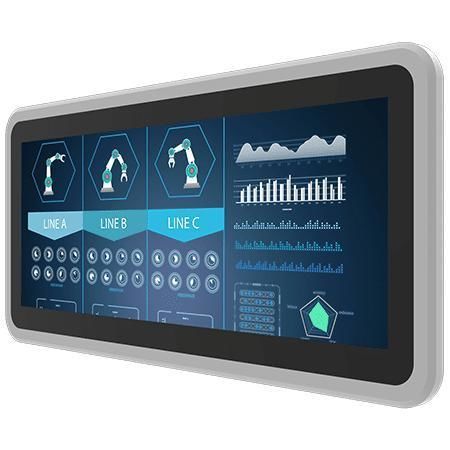

Multitouch screen monitor W12L100-PPB1

projected capacitive touchscreenPCAP capacitive touch screen12.3"

Overview
Winmate W12L100-PPB1 is a 12.3-inch panel-mount multi-touch display engineered for industrial visualization, control rooms and equipment monitoring. Designed for OEMs, systems integrators and industrial buyers requiring long lifecycle availability and reliable touchscreen operation in harsh environments.

Key Features

• 12.3" display, 1920 x 720 resolution
• Projected Capacitive Multi-Touch (PCAP)
• Panel mount with metal housing and aluminum bezel
• VGA input (default) and HDMI/DVI options
• Front protection rating: IP65
• Panel brightness: 1000 nits; Contrast ratio: 1000:1

Highlights
Front IP65 rating protects against water splashes and dust ingress for use in industrial and mission-critical installations.

Combination of analog (VGA) and digital (HDMI/DVI) video inputs ensures compatibility with legacy systems and modern controllers for flexible integration.

PCAP multi-touch provides accurate, responsive multi-finger gestures for HMI tasks such as zooming, panning and touchscreen control.

Certifications

• Front IP65
• CE
• FCC

Applications
Industrial visualization, control rooms, equipment monitoring, embedded HMIs and OEM panel integrations where durability, touch reliability and long-term supply are required.

Technical specifications

• Model: W12L100-PPB1
• Brand: Winmate
• Size: 12.3 inches
• Resolution: 1920 x 720
• Touch type: Projected Capacitive Multi Touch (PCAP)
• Panel brightness: 1000.0 nits
• Contrast ratio: 1000:1
• Viewing angles: 88 / 88 / 88 / 88
• Display colors: 16.7M Colors
• Operating humidity: 10% to 90% RH, non-condensing
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• IP rating: Front IP65
• Certifications: CE, FCC
• USB: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5mm) (optional); 2 x Speaker (optional)
• Dimensions: 338.3 x 159.8 x 48.5 mm
• Cut out: 318 x 140 mm
• Weight: 5.5 kg
• Mounting: Panel Mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: 12V DC in (standard); 24V DC in (optional)
• Control buttons: 5 keys: -, +, Power, Esc, Enter
• Accessories included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional accessories: Remote controller (optional, varies by product)
